In the previous lesson, you learned how to configure an MCP server.
In this challenge, you will create a development environment and connect VS Code to your Neo4j database using the Neo4j MCP server.
Get started
The repository, neo4j-graphacademy/genai-mcp-neo4j-tools, has been created for this course. It contains any starter code and resources you need.
You can use a GitHub codespace as an online IDE and workspace for this course. It will automatically clone the course repository and set up your environment.
GitHub Codespaces
You will need to login with a GitHub account. The GitHub Codespaces free monthly usage will cover the duration of this course.
The Neo4j MCP server is automatically installed in your Codespace, you can view the complete installation instructions below, or the Neo4j MCP server documentation.
Neo4j MCP Server Installation
You will need to :
-
Install an MCP server host, e.g. VS Code.
-
Download the Neo4j MCP server archive for your operating system^ from the github.com/neo4j/mcp repository.
-
Install the MCP server by extracting the archive, copying the executable to a location on your system, and adding the location to your system PATH.
-
Configure your host to add the Neo4j MCP server.
For examples, in VS Code, add the following configuration to your
.vscode/mcp.jsonfile:jsonvscode/mcp.json{ "servers": { "neo4j": { "type": "stdio", "command": "neo4j-mcp", "envFile": "${workspaceFolder}/.env" } } }
You can find detailed instructions in the Installation documentation.
You do not need to create a Neo4j database as you will use the provided sandbox instance. Connection details are detailed below.
The sandbox uses Neo4j’s GenAI functions, you can find out more about how to configure them in the Neo4j GenAI integration documentation.
Configuring the Neo4j MCP server
The MCP server is configured in the host configuration file (e.g. .vscode/mcp.json):
{
"servers": {
"neo4j": {
"type": "stdio",
"command": "neo4j-mcp",
"envFile": "${workspaceFolder}/.env"
}
}
}You can identify:
-
The server name -
neo4j -
The transport
type-stdio -
The
commandto start the server -neo4j-mcp -
That the environment variables will be loaded from the
envFilelocation a.envfile in the workspace root folder.
Environment variables
The connection to the Neo4j database is configured using environment variables stored in a .env file.
Update the .env file with the connection details for your Neo4j database:
NEO4J_URI="{instance-scheme}://{instance-ip}:{instance-boltPort}"
NEO4J_USERNAME="{instance-username}"
NEO4J_PASSWORD="{instance-password}"
NEO4J_DATABASE="{instance-database}"Interacting with Neo4j
You can use the MCP Server to interact with your Neo4j database. The server provides access to the following tools:
| Tool | Purpose |
|---|---|
|
Get labels, relationship types, and property keys from the Neo4j database. Provides valuable context to AI clients. |
|
Execute Cypher queries in read-only mode. Rejects writes, schema/admin operations, and PROFILE queries. |
|
Execute Cypher queries with write access (CREATE, MERGE, DELETE, SET, etc.). Can be disabled via |
|
List Graph Data Science procedures available in the Neo4j instance. Helps AI clients understand available GDS capabilities. |
Verify your installation
To test the MCP server you will need to:
-
Start the server.

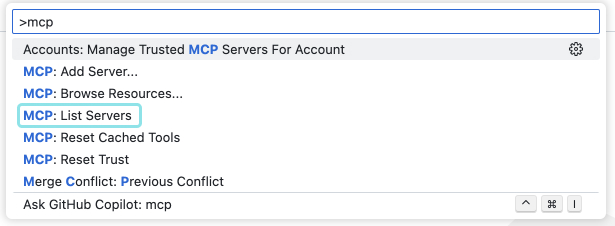

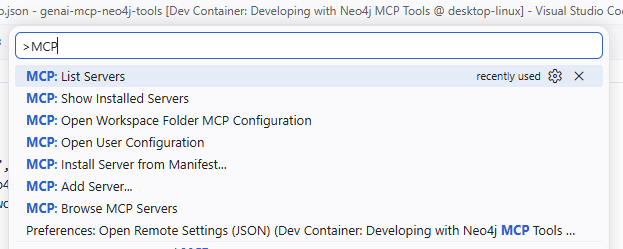

Using VS Code, you can start the server by executing the MCP: List servers command in the Command Palette (Ctrl/Cmd + Shift + P)

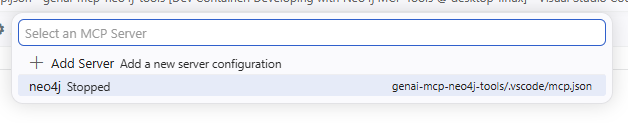

Select the
neo4jserver, and clicking Start Server.
-
Initiate a request through the agent to call the server.

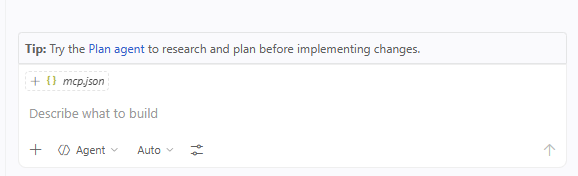

Open a new chat in Agent mode (Ctrl/Cmd + Shift + I).
Prompt the agent with the following question:

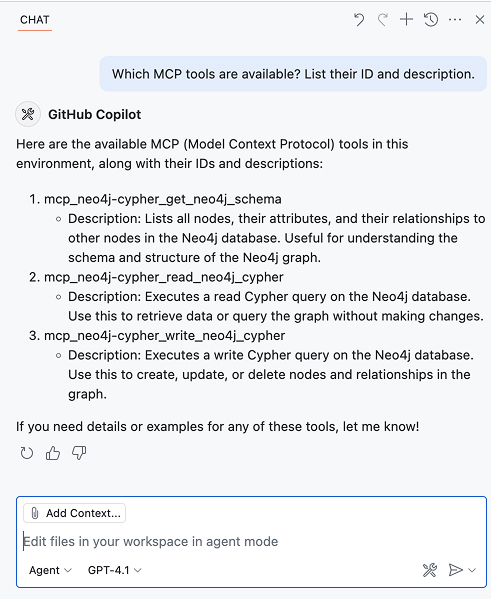

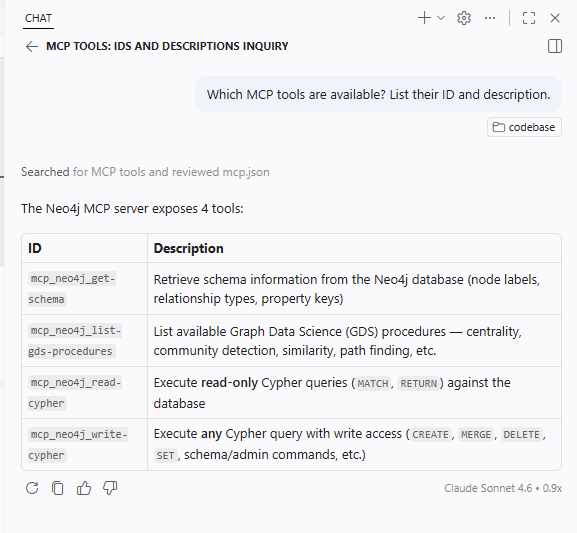

Which MCP tools are available? List their ID and description.
You should see the agent work through a reasoning process to call the MCP server and list the available tools.
Agent mode
Tools are only available when you use Chat in Agent mode.
Available tools
Which of the following tools are available through the Neo4j Cypher MCP server?
Select all that apply:
-
❏
backup-neo4j-database -
✓
get-schema -
✓
list-gds-procedures -
✓
read-cypher -
❏
validate-cypher-syntax -
✓
write-cypher
Hint
You can ask the agent to list the tools available in the Neo4j MCP server. Try the following prompt:
_What tools are available in the Neo4j MCP server? List the tool name as it appears on the server and a short description._Solution
The tools available in the Neo4j Cypher MCP server are:
-
get-schema - Lists all node labels, their attributes, and relationships in the Neo4j database
-
read-cypher - Executes read-only Cypher queries to retrieve data from the database
-
list-gds-procedures - Lists available Graph Data Science procedures in the Neo4j instance
-
write-cypher - Executes write Cypher queries to create, update, or delete data in the database
Summary
In this challenge, you demonstrated how to install an MCP server and configure it with environment variables.
Installing Multiple Neo4j Connections
You can use the Neo4j MCP server multiple times within the same host allowing you to connect to multiple databases.
{
"mcpServers": {
"movies-neo4j": {
"type": "stdio",
"command": "neo4j-mcp",
"env": {
"NEO4J_URI": "neo4j+s://demo.neo4jlabs.com",
"NEO4J_USERNAME": "recommendations",
"NEO4J_PASSWORD": "recommendations",
"NEO4J_DATABASE": "recommendations"
}
},
"local-neo4j": {
"type": "stdio",
"command": "neo4j-mcp",
"env": {
"NEO4J_URI": "bolt://localhost:7687",
"NEO4J_USERNAME": "neo4j",
"NEO4J_PASSWORD": "password",
"NEO4J_DATABASE": "neo4j",
"NEO4J_NAMESPACE": "local"
}
}
}
}This configuration will use two Neo4j MCP servers, one with tools prefixed with movies- for the movies database and one prefixed with local- for the local database.
In the next module, you will explore the full capabilities of the Neo4j MCP server and the available tools.
