In this lesson, we will explore how to transform unstructured documents into knowledge graphs using Neo4j’s GraphRAG Library.
The Neo4j GraphRAG Library provides developers with methods to build and query knowledge graphs.
The library allows you to build pipelines to:
Chunk text documents and PDFs and create vector embeddings
Extract entities and relationships from the chunks and store them in a knowledge graph
Query vector embeddings and return the surrounding nodes and relationships
sh
pip install "neo4j_graphrag[openai]"
The Source: EDGAR SEC Filings

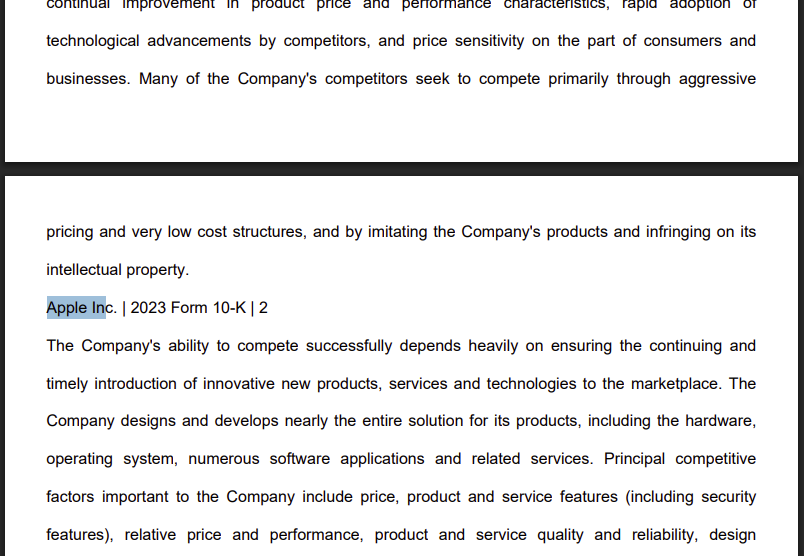

EDGAR (Electronic Data Gathering, Analysis, and Retrieval) SEC filings are official documents that public companies must submit to the U.S. Securities and Exchange Commission (SEC).
These documents are the authoritative source for company information, containing details about:
Financial performance and metrics
Business operations and strategy
Risk factors and challenges
Executive leadership and compensation
Corporate governance
The Challenge:
How do you extract structured insights from these comprehensive but text-heavy regulatory documents that contain crucial business intelligence?
Documents in your knowledge graph are the original PDF files that were processed.
Chunks are smaller, semantically meaningful segments of text extracted from each document.
This is known in GraphRAG as a Lexical graph.
Why This Chunking Strategy?
Improves retrieval and search accuracy
Enables LLMs to process long documents effectively
Each chunk becomes a searchable unit linked to its source
Supports both granular search and traceability
This chunking strategy was crucial for creating a knowledge graph that works at multiple levels of granularity - from specific facts to document-level context. Unlike traditional RAG chunks, these chunks are connected to business entities and relationships.
Lexical graphs with hierarchical structure
Documents are also inherently hierarchical.
A book will contain chapters, which are in turn a collection of sections, which are in turn a collection of paragraphs.
If the given documents have pre-defined structures, it is useful to persist them into the chunk structure.
Step 2: Guided Extraction Prompts
The extraction process uses carefully crafted prompts to ensure quality and accuracy.
The following principles are crucial for achieving high-quality results:
Company Validation: Only extract approved companies from predefined lists
Context Resolution: Resolve generic references like "the Company" to actual names
Schema Enforcement: Strict adherence to defined entity types and properties
Quality Control: Validate all extracted relationships against schema
This schema + prompt combination acts as the blueprint - telling the LLM exactly what to look for and how to connect entities in the knowledge graph you’ll explore.
An example prompt
Here’s how to create effective extraction prompts:
python
from neo4j_graphrag.experimental.pipeline.kg_builder import ERExtractionTemplate
company_instruction = (
"You are an expert in extracting company information from SEC filings. "
"When extracting, the company name must match exactly as shown below. "
"ONLY USE THE COMPANY NAME EXACTLY AS SHOWN IN THE LIST. "
"If the text refers to 'the Company', 'the Registrant', or uses a pronoun, "
"you MUST look up and use the exact company name from the allowed list. "
"UNDER NO CIRCUMSTANCES should you output 'the Company' or generic phrases. "
)
# Combine with default template
custom_template = company_instruction + ERExtractionTemplate.DEFAULT_TEMPLATE
prompt_template = ERExtractionTemplate(template=custom_template)
Choose an embedding service to create embeddings from the text
Choose an LLM to use for the entity and relationship extraction
Step 3: SimpleKGPipeline Example
Create an extraction pipeline with SimpleKGPipeline.
python
Create the pipeline
from neo4j_graphrag.experimental.pipeline.kg_builder import SimpleKGPipeline
# Instantiate the SimpleKGPipeline with full configuration
kg_builder = SimpleKGPipeline(
driver=driver,
llm=llm, embedder=embedder, # LLM and embedding service
prompt_template=prompt_template, # Custom prompt from previous step
entities=entities, # Entity schema
relations=relations, # Relationship schema
from_pdf=False, # Set to True for PDF processing
)
Step 3: SimpleKGPipeline Example
python
text = """
Neo4j is developed by Neo4j, Inc., based in San Mateo, California, United States.
In November 2016, Neo4j secured $36M in Series D Funding led by Greenbridge Partners.
In November 2018, Neo4j secured $80M in Series E Funding led by One Peak Partners.
"""
result = await kg_builder.run_async(text=text)
The function returns a summary of nodes to extract and the number of nodes created.

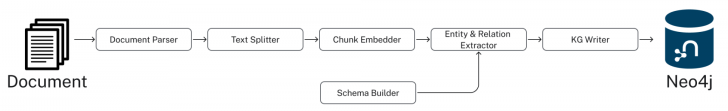

PDF Text Extraction: Extracted raw text from PDF documents
Document Chunking: Broke text into semantically meaningful chunks
Entity Extraction: Used LLM to identify companies, metrics, risks, etc.
Relationship Extraction: Found connections between entities
Graph Storage: Saved structured entities and relationships to Neo4j
Vector Embeddings: Generated embeddings for chunks and stored them
This transformed hundreds of pages of unstructured PDF text into the queryable knowledge graph with thousands of connected entities.
Step 3: Verify Entity Extraction
Verify Entity Extraction:
cypher
// Count what entities were extracted by type
MATCH (e)
WHERE NOT e:Document AND NOT e:Chunk
RETURN labels(e) as entityType, count(e) as count
ORDER BY count DESC
Step 4: Enriching the Graph with Structured Data
PDF extraction is only part of the story.
The knowledge graph built by entity extraction can be enhanced with structured data loaded from CSV files.
Structured Data Sources:
Asset Manager Holdings: Ownership information connecting asset managers to companies
Company Filing Information: Metadata linking companies to their PDF documents
Why Both Data Types?
Unstructured (PDFs): Rich content about companies, risks, metrics
Structured (CSVs): Precise ownership data and document relationships
This creates a complete picture: detailed company information from PDFs plus structured ownership and filing relationships.
Step 4: Sample Structured Data
Asset Manager Holdings (Sample Data):
managerName
companyName
ticker
Value
shares
ALLIANCEBERNSTEIN L.P.
AMAZON COM INC
AMZN
$6,360,000,000
50,065,439
ALLIANCEBERNSTEIN L.P.
APPLE INC
AAPL
$4,820,000,000
28,143,032
AMERIPRISE FINANCIAL INC
ALPHABET INC
GOOG
$4,780,000,000
36,603,757
BlackRock Inc.
AMAZON COM INC
AMZN
$78,000,000,000
613,380,364
FMR LLC
MICROSOFT CORP
MSFT
$68,200,000,000
215,874,152
Step 4: Sample Structured Data
Company Filing Information (Sample Data):
name
ticker
cusip
cik
form10KUrls
AMAZON
AMZN
23135106
1018724
0001018724-23-000004.pdf
NVIDIA Corporation
NVDA
067066G104
1045810
0001045810-23-000017.pdf
APPLE INC
AAPL
3783310
1490054
0001096906-23-001489.pdf
PAYPAL
PYPL
1633917
1633917
0001633917-23-000033.pdf
MICROSOFT CORP
MSFT
594918954
789019
0000950170-23-035122.pdf
Loading Structured Data
Neo4j Data Importer to map CSV files to the existing knowledge graph
AssetManager nodes were created from holdings data
OWNS relationships connected asset managers to companies with holding values
FILED relationships linked companies to their PDF documents
Verify the Complete Graph:
cypher
// See the complete data model - all node types
MATCH (n)
RETURN labels(n) as nodeType, count(n) as count
ORDER BY count DESC
Exploring What Was Created
Now that we’ve seen how to build a knowledge graph, let’s explore one.
You have access to a knowledge graph that contains:
The Complete Data Model:
500+ Company entities extracted from SEC filings
Asset Manager entities with ownership information
2,000+ Financial metrics and risk factors as structured nodes
Clear entity relationships connecting business concepts
Document links bridging structured and unstructured data
Visualize the Complete Schema:
cypher
CALL db.schema.visualization()
This shows the complete knowledge graph schema including both extracted entities (Company, Product, FinancialMetric, etc.) and loaded structured data (AssetManager, ownership relationships) that you’ll work with.
Explore a Complete Company Profile
Explore a Complete Company Profile:
cypher
See how all three data types connect for one company
MATCH (c:Company {name: 'APPLE INC'})
RETURN c.name,
COUNT { (c)-[r1]->(extracted) WHERE NOT extracted:Chunk AND NOT extracted:Document } AS extractedEntities,
COUNT { (:AssetManager)-[:OWNS]->(c) } AS assetManagers,
COUNT { (c)<-[:FROM_CHUNK]->(chunk:Chunk) } AS textChunks
Additional Exploration Queries:
cypher
Count what the pipeline created
MATCH (d:Document)
RETURN d.path,
COUNT { (d)<-[:FROM_DOCUMENT]->(:Chunk) } AS chunks,
COUNT { (c)<-[:FROM_CHUNK]-() } AS entities
ORDER BY entities DESC
cypher
// See all asset managers that were loaded
MATCH (am:AssetManager)
RETURN am.managerName, count{(am)-[:OWNS]->()} as companiesOwned
ORDER BY companiesOwned DESC
LIMIT 10
cypher
// Check data quality across companies
MATCH (c:Company)
OPTIONAL MATCH (c)-[r]->(entity)
RETURN c.name, count(r) as totalRelationships,
collect(DISTINCT type(r)) as relationshipTypes
ORDER BY totalRelationships DESC
LIMIT 5
cypher
// Find all financial metrics for a specific company
MATCH (c:Company {name: 'MICROSOFT CORP'})-[:HAS_METRIC]->(m:FinancialMetric)
RETURN c.name, m.name
LIMIT 10
cypher
// Discover risk factors across all companies
MATCH (c:Company)-[:FACES_RISK]->(r:RiskFactor)
RETURN c.name, r.name
LIMIT 50
Key Takeaways
✅ Unstructured → Structured: PDF text will be transformed into business entities and relationships
✅ Schema-Driven: Clear entity definitions will guide accurate extraction
✅ AI-Powered: LLMs will identify and extract meaningful business concepts
✅ Relationship-Aware: Connections between entities will be preserved and made explicit
✅ Data Model Ready: Clean, structured data will be prepared for the knowledge graph you’ll explore
A structured data model is the foundation for everything that follows. Without it, you would still have inflated, unprecise, unstructured text rather than a repository of facts that the text attempts to convey!
Summary
In this lesson, you learned how to extract structured data from unstructured PDF documents.
We explored an end-to-end process of entity extraction to create a knowledge graph from PDF documents.
The Process:
Started with EDGAR SEC filing PDFs containing company information
Defined a clear schema with entities (Company, Executive, Product, etc.) and relationships
Applied AI-powered extraction with carefully crafted prompts to identify business entities
Used guided extraction to ensure data quality and consistency
Created structured entities and relationships from free-form text
What Was Created:
500+ company entities from SEC filings
2,000+ financial metrics and risk factors as structured nodes
Clear entity relationships connecting business concepts
Clean, structured data model ready for graph storage
Key Technologies:
SimpleKGPipeline for end-to-end knowledge graph construction
ERExtractionTemplate for custom prompt engineering
SchemaFromTextExtractor for automatic schema generation
OpenAI GPT-4 with JSON response formatting for structured extraction
Custom validation and error handling strategies
Advanced entity resolution and relationship mapping
This structured data model is now ready to be stored in a knowledge graph and enhanced with vector embeddings for search.
In the next lesson, you will learn about vectors and embeddings that enable semantic search across this structured data.
