Count Store

Introduction

In this lesson, you will learn about the transactional count store and how you can use it to optimize certain queries.

Neo4j maintains a transactional count store that keeps track of the number of nodes and relationships in the graph. This allows Neo4j to quickly return counts without having to scan the entire graph.

Count all nodes

Run the following query to profile a count of all the nodes in the graph:

cypher
Count all nodes
PROFILE MATCH (n)
RETURN count(n)

You can see from the profile that Neo4j is reading from the count store and only reading 1 row.

Depending on how you write your query, Neo4j can use the count store and wont have to scan the graph to calculate the count.

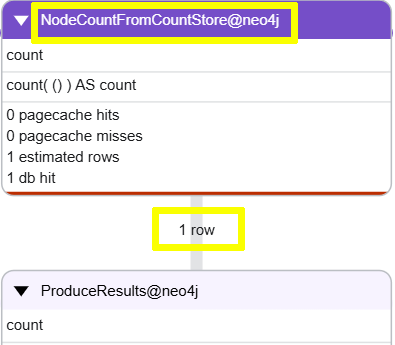

Profile result of counting all nodes

Counting customer’s orders

Profile the following query that returns a count of how many order and customer has purchased:

cypher
Count of orders by customer
PROFILE MATCH (c:Customer)-[:PURCHASED]-(o:Order)
RETURN
    c.customerID,
    count(o)

All the Customer nodes are read, then all the PURCHASED relationships are expanded to calculate the count of orders per customer.

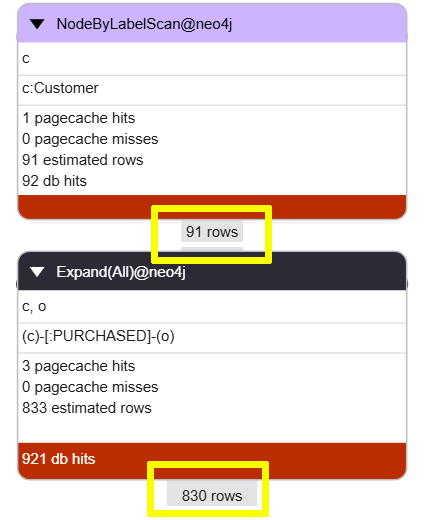

Profile result of counting orders per customer

Optimizing with the count store

An alternative approach is to use the count store to get how many PURCHASED relationships each Customer has.

cypher
Count of orders per customer using count store
PROFILE MATCH (c:Customer)   // (1)
RETURN
  c.customerID,
  count{(c)-[:PURCHASED]-()} // (2)

  1. All the customers are found, but no relationships are expanded.

  2. The count store is used to get the count of PURCHASED relationships for each customer.

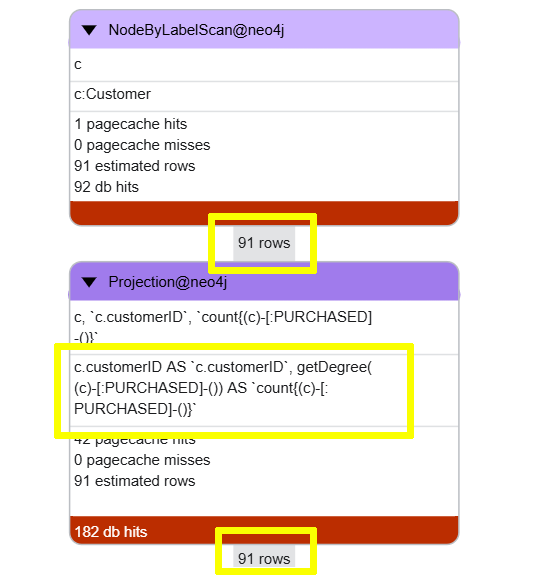

Profile result of counting orders per customer using the count store

The getDegree function is used to read the count store and return the count of relationships for each customer. This allows Neo4j to return the count without having to expand the relationships.

Counting products per order

The following query counts how many products are in each order:

cypher
Count of products per order
MATCH (o:Order)-[:ORDERS]->(p:Product)
RETURN o.orderID, count(p)

You challenge is to optimize this query to use the count store:

  1. Profile the query and note how many rows are read and how many relationships are expanded.

  2. Rewrite the query to use the count store and profile it again.

  3. Compare the results.

Click to reveal the solution

  1. Profiling the query shows that it reads all the Order nodes and expands all the ORDERS relationships to count the products:

    cypher
    Profile the query
    PROFILE MATCH (o:Order)-[:ORDERS]->(p:Product)
RETURN o.orderID, count(p)

  2. The query can be rewritten to use the count store to get the count of ORDERS relationships for each order:

    cypher
    Optimized query using the count store
    PROFILE MATCH (o:Order)
RETURN o.orderID, count{(o)-[:ORDERS]->()}

  3. Profiling the optimized query shows that it reads all the Order nodes but does not expand any relationships and reduces database reads significantly.

Exists

You can use the count store to check if a node has any relationships using exists.

For example, you can check if a Customer has made any purchases:

cypher
Customers with no purchases
MATCH (c:Customer)
WHERE not exists{(c)-[:PURCHASED]-()}
RETURN c.customerID

The alternative approach would be to use an OPTIONAL MATCH, check for null values, and use DISTINCT to remove duplicates:

cypher
Customers with no purchases
MATCH (c:Customer)
OPTIONAL MATCH (c)-[:PURCHASED]->(o)
WITH c,o
WHERE o IS NULL
RETURN c.customerID

Review and compare the profile for both these queries and identify the performance difference.

Learn more

You can learn more about the count store in the Neo4j Knowledge Base article Fast counts using the count store.

Lesson Summary

In this lesson, you learned about the count store and how it can be used to optimize queries that count or check for the existence of nodes and relationships.

In the next lesson, you will learn how to use WITH to break down complex queries and optimize them by controlling the flow of data and the execution plan.
