Relationship Properties

Last lesson, you mapped the ACTED_IN relationship from the graph to the actors field in the Movie class. Now you will map the relationship’s property role by creating a separate Role class to contain the field.

Add relationship properties class

Create a new class called Role.java in the src/main/java/com/example/appspringdata package.

Import RelationshipId, RelationshipProperties, and TargetNode classes.

java

import org.springframework.data.neo4j.core.schema.RelationshipId;
import org.springframework.data.neo4j.core.schema.RelationshipProperties;
import org.springframework.data.neo4j.core.schema.TargetNode;

Just above the class definition, add the @RelationshipProperties annotation.
java
```
@RelationshipProperties
```
Add the properties to the class, including an id field (annotated with @RelationshipId), the role field, and a person field (annotated with @TargetNode) to specify the end node of the relationship.
java
```
    @RelationshipId
    private String id;

    private String role;

    @TargetNode
    private final Person person;
```

Add a class constructor, getter methods for all fields, and a setter method for the role field.

java

    public Role(String id, String role, Person person) {
        this.id = id;
        this.role = role;
        this.person = person;
    }

    public String getId() {
        return id;
    }

    public String getRole() {
        return role;
    }

    public void setRole(String role) {
        this.role = role;
    }

    public Person getPerson() {
        return person;
    }

Role setter methods

You do not need setter methods for the id and person fields because the id is handled by the database, and the Person entity is handled by a separate class.

Completed code is available below to check your work.

Click to reveal the completed Role class code

java

import org.springframework.data.neo4j.core.schema.RelationshipId;
import org.springframework.data.neo4j.core.schema.RelationshipProperties;
import org.springframework.data.neo4j.core.schema.TargetNode;

@RelationshipProperties
public class Role {
    @RelationshipId
    private String id;

    private String role;

    @TargetNode
    private final Person person;

    public Role(String id, String role, Person person) {
        this.id = id;
        this.role = role;
        this.person = person;
    }

    public String getId() {
        return id;
    }

    public String getRole() {
        return role;
    }

    public void setRole(String role) {
        this.role = role;
    }

    public Person getPerson() {
        return person;
    }
}

Update Movie class

Next, you need to update the Movie.java class to reference the new relationship class Role, rather than Person.

Update the actors variable to return a List<Role>, then update the related getter and setter for the same change.

Completed code is available below to check your work.

Click to reveal the updated Movie class code

java

// tag::movie-roles[]
import org.springframework.data.neo4j.core.schema.Id;
import org.springframework.data.neo4j.core.schema.Node;
import org.springframework.data.neo4j.core.schema.Relationship;
import java.util.List;

@Node
public class Movie {
    @Id
    private String movieId;

    private String title;
    private String plot;
    private String poster;
    private String url;
    private String imdbId;
    private String tmdbId;
    private String released;

    private Long year;
    private Long runtime;
    private Long budget;
    private Long revenue;
    private Long imdbVotes;

    private Double imdbRating;

    private String[] languages;
    private String[] countries;

    @Relationship(value = "ACTED_IN", direction = Relationship.Direction.INCOMING)
    private List<Role> actors;

    public Movie(String movieId, String title, String plot, String poster, String url, String imdbId, String tmdbId,
            String released, Long year, Long runtime, Long budget, Long revenue, Long imdbVotes, Double imdbRating,
            String[] languages, String[] countries) {
        this.movieId = movieId;
        this.title = title;
        this.plot = plot;
        this.poster = poster;
        this.url = url;
        this.imdbId = imdbId;
        this.tmdbId = tmdbId;
        this.released = released;
        this.year = year;
        this.runtime = runtime;
        this.budget = budget;
        this.revenue = revenue;
        this.imdbVotes = imdbVotes;
        this.imdbRating = imdbRating;
        this.languages = languages;
        this.countries = countries;
    }

    public String getMovieId() {
        return movieId;
    }

    public void setMovieId(String movieId) {
        this.movieId = movieId;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public String getPlot() {
        return plot;
    }

    public void setPlot(String plot) {
        this.plot = plot;
    }

    public String getPoster() {
        return poster;
    }

    public void setPoster(String poster) {
        this.poster = poster;
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public String getImdbId() {
        return imdbId;
    }

    public void setImdbId(String imdbId) {
        this.imdbId = imdbId;
    }

    public String getTmdbId() {
        return tmdbId;
    }

    public void setTmdbId(String tmdbId) {
        this.tmdbId = tmdbId;
    }

    public String getReleased() {
        return released;
    }

    public void setReleased(String released) {
        this.released = released;
    }

    public Long getYear() {
        return year;
    }

    public void setYear(Long year) {
        this.year = year;
    }

    public Long getRuntime() {
        return runtime;
    }

    public void setRuntime(Long runtime) {
        this.runtime = runtime;
    }

    public Long getBudget() {
        return budget;
    }

    public void setBudget(Long budget) {
        this.budget = budget;
    }

    public Long getRevenue() {
        return revenue;
    }

    public void setRevenue(Long revenue) {
        this.revenue = revenue;
    }

    public Long getImdbVotes() {
        return imdbVotes;
    }

    public void setImdbVotes(Long imdbVotes) {
        this.imdbVotes = imdbVotes;
    }

    public Double getImdbRating() {
        return imdbRating;
    }

    public void setImdbRating(Double imdbRating) {
        this.imdbRating = imdbRating;
    }

    public String[] getLanguages() {
        return languages;
    }

    public void setLanguages(String[] languages) {
        this.languages = languages;
    }

    public String[] getCountries() {
        return countries;
    }

    public void setCountries(String[] countries) {
        this.countries = countries;
    }

    public List<Role> getActors() {
        return actors;
    }

    public void setActors(List<Role> actors) {
        this.actors = actors;
    }
}
// end::movie-roles[]

Test the application (again!)

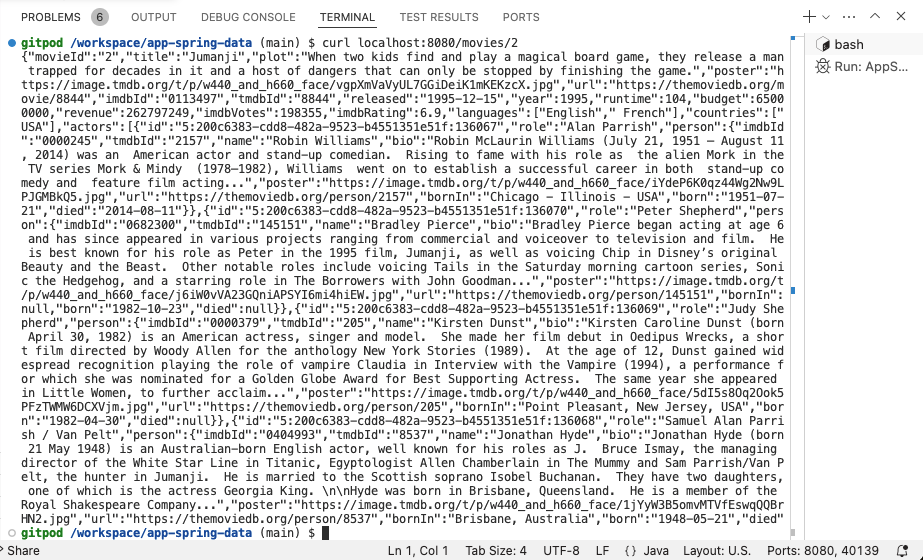

Start the application and run curl 'localhost:8080/movies/2' from the terminal tab. You should see the same list of movie properties as before, plus one for role containing the name(s) of the character(s) the person played in that movie.

Nice work! You mapped the ACTED_IN relationship from the graph to the actors field in the Movie class, and you mapped a relationship property for role by creating a separate Role class to contain the field.

Summary

In this lesson, you mapped the relationship property for the roles actors played in movies by creating a separate Role class.

Next, you can optionally learn about some application modeling mistakes to avoid when working with Neo4j. Or you can continue onto the next module to learn how to write data to the database from the application.
