In the previous lesson you described the Movies graph model and mapped stakeholder questions to the data. Use the dashboard you created in Exploring Dashboards. If you have not loaded the Movies data or created a dashboard yet, complete that lesson first.
In this lesson you will learn:
-
How to add cards to your existing dashboard using AI prompts
-
How to add a card with a Cypher query for precise control
-
How to edit cards and add a filter so viewers can change what is displayed
Open your dashboard and add a card
Open your movies dashboard from the Dashboards menu. You will add new cards and a filter to it.
Before creating your dashboard, make sure your instance contains the sample movie data. If you haven’t done that yet, go back to lesson 3 - Exploring Dashboards in the Getting Started module and follow the steps to load the data.
Go to the Dashboards tool and click Create with AI to begin.

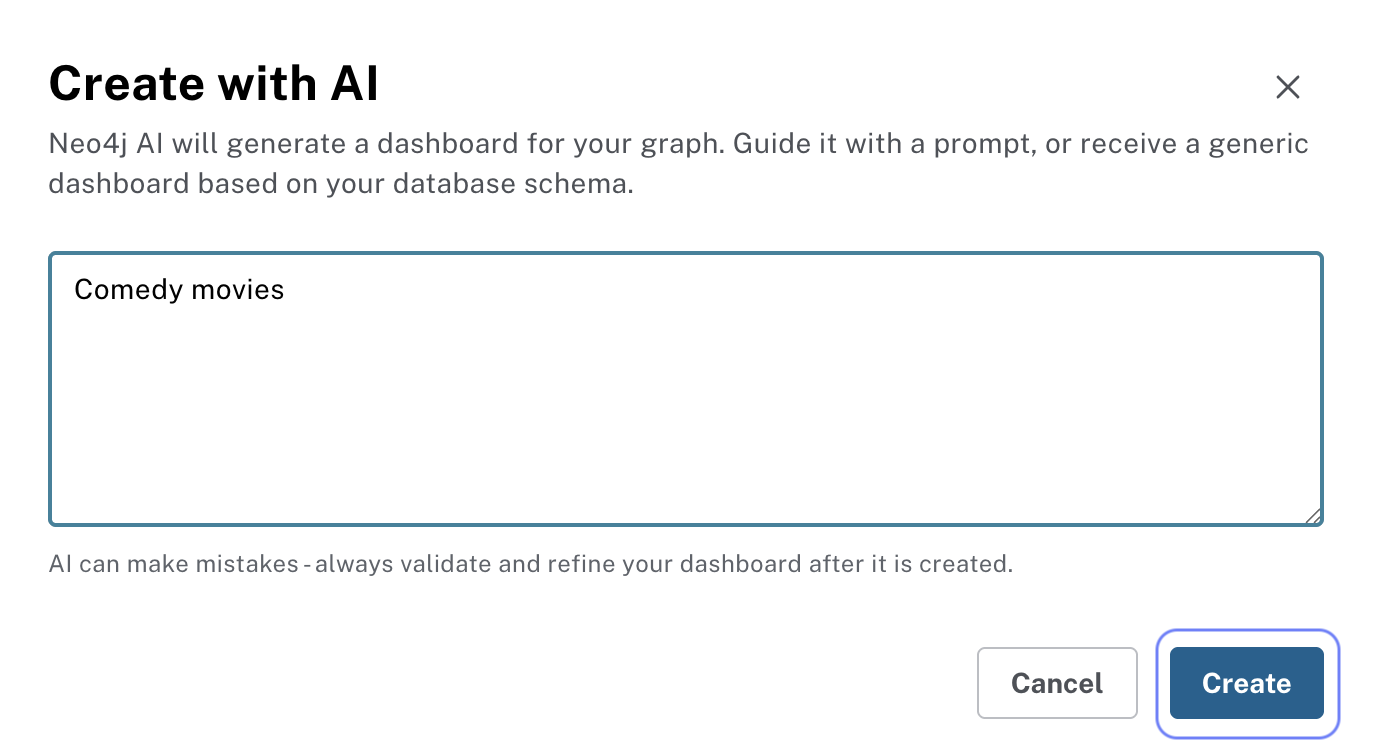

Enter a description of the insights you want to visualize. For example, you can enter a description like "Visualize actor relationships in movies." or simply "Actor relationships":
Be specific
Be specific about the node labels and relationship types to ensure accurate results.
Create a new AI generated dashboard by clicking the "Generate with AI" button, which will prompt you to enter a description of the insights you want to visualize. The AI will then generate a dashboard based on your description:
You should have a dashboard that looks similar to this:
Adding more cards
Dashboard cards are individual components that display specific data visualizations.

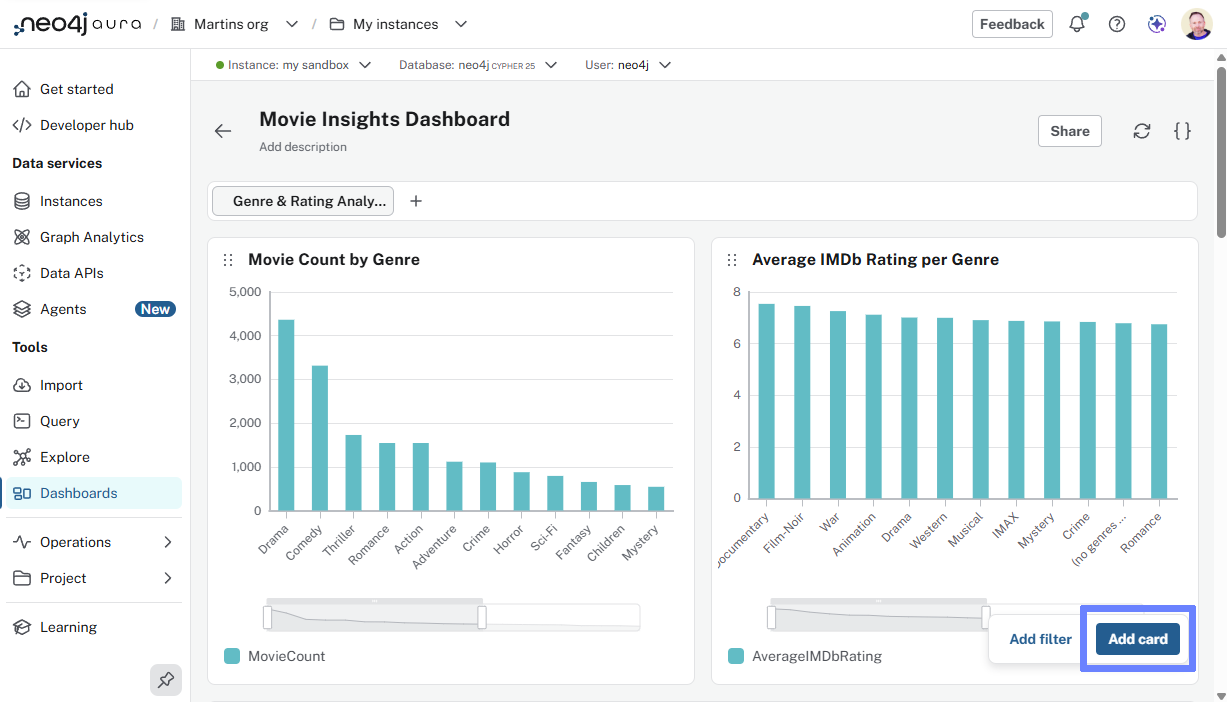

Click Add a card to create your next visualization:

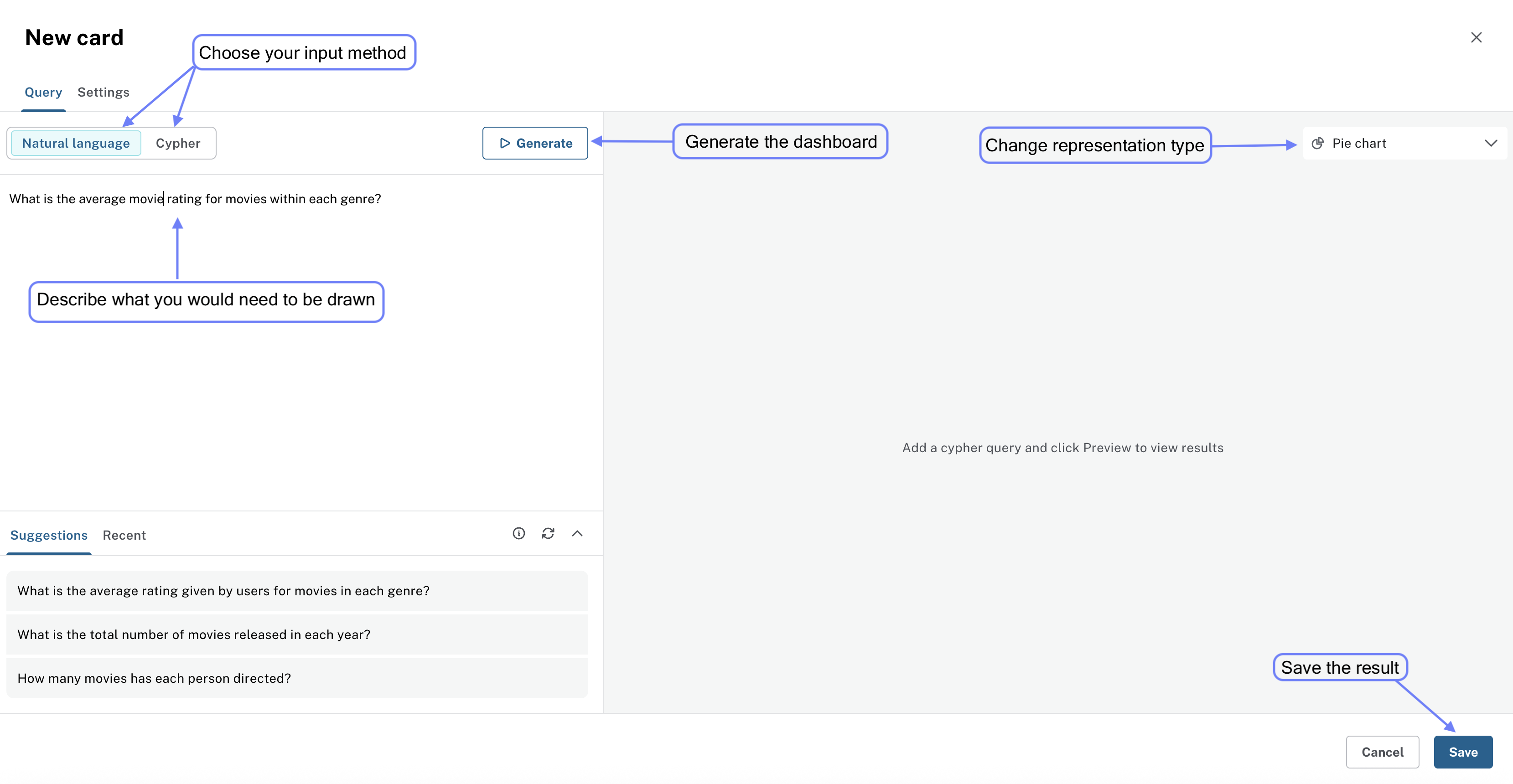

You can create cards using AI prompts or Cypher queries. To create a card with AI, use the natural language feature in the card editor:
Adding a card with Cypher
For precise control over the result, add a card that runs a Cypher query. Click Add a card, then in the card editor:
-
Change the card title from "New card" to something descriptive like "Actor Overview"
-
Select Graph from the visualization type dropdown
-
Paste your Cypher query into the Query field
For example, create a card that shows which movies Tom Hanks has acted in:
MATCH (p:Person)-[r:ACTED_IN]->(m:Movie)
WHERE p.name = 'Tom Hanks'

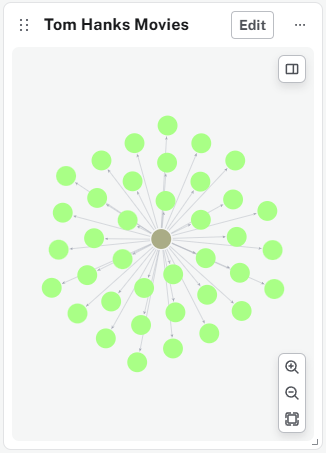

RETURN p,r,mYour dashboard will display a graph visualization showing Tom Hanks and his movie connections.
Repositioning cards
Move cards by dragging them using the six-dot handle that appears when you hover over a card.
Editing a card

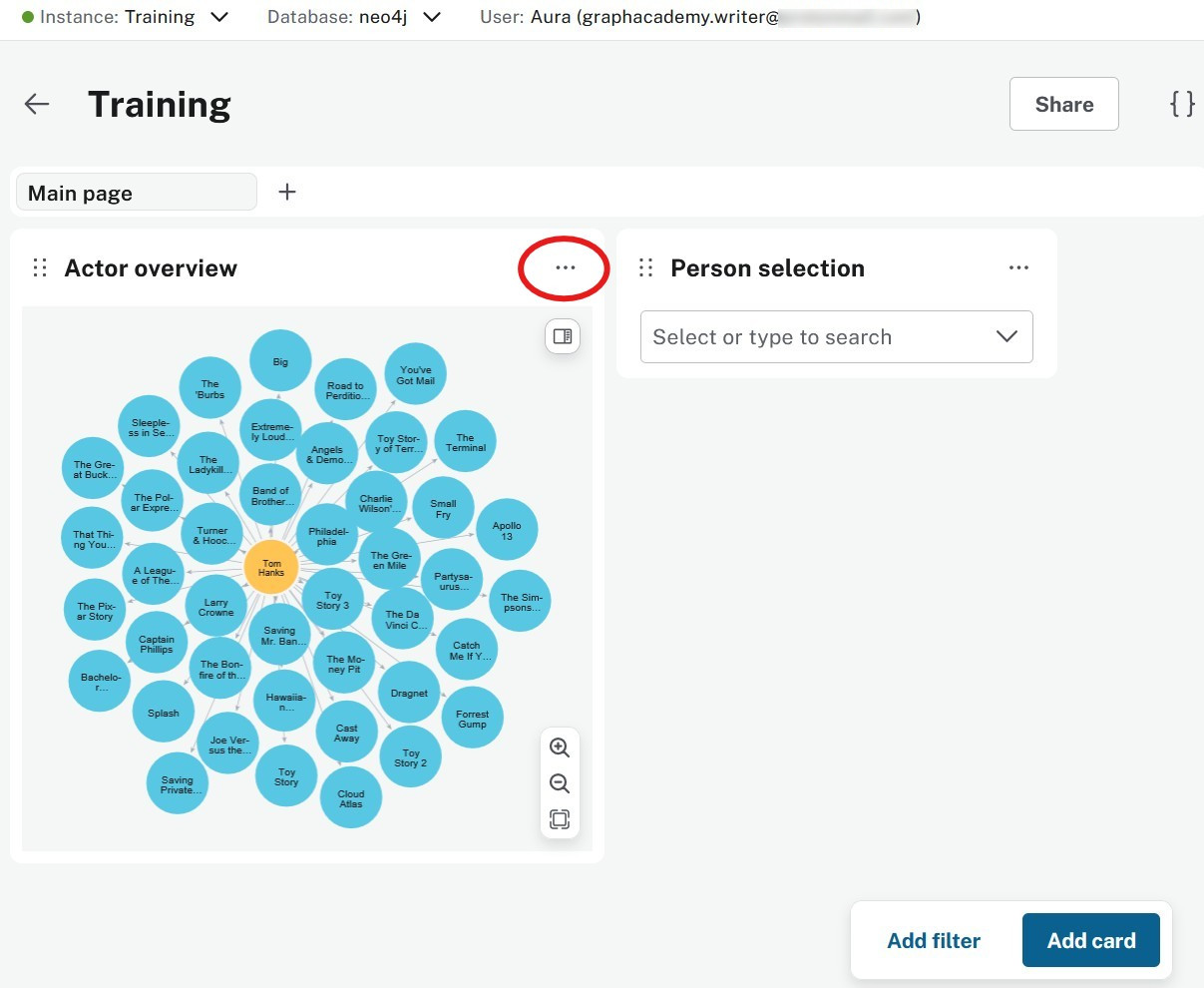

Change a card by clicking the three-dot menu on the card and selecting Edit card.
Make the changes you want, then click Save changes to update the card.
Adding a filter
Filters allow users to dynamically change what data is displayed without modifying queries.

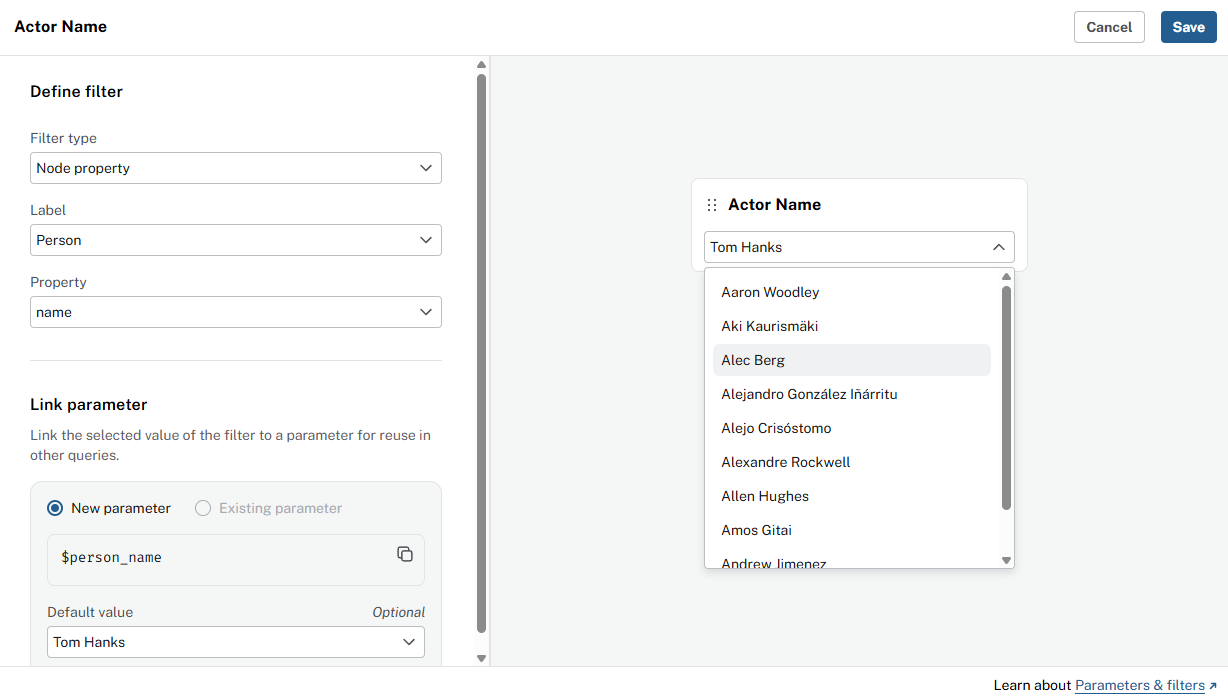

To add a filter to your dashboard, go to the dashboard view and select Add filter:

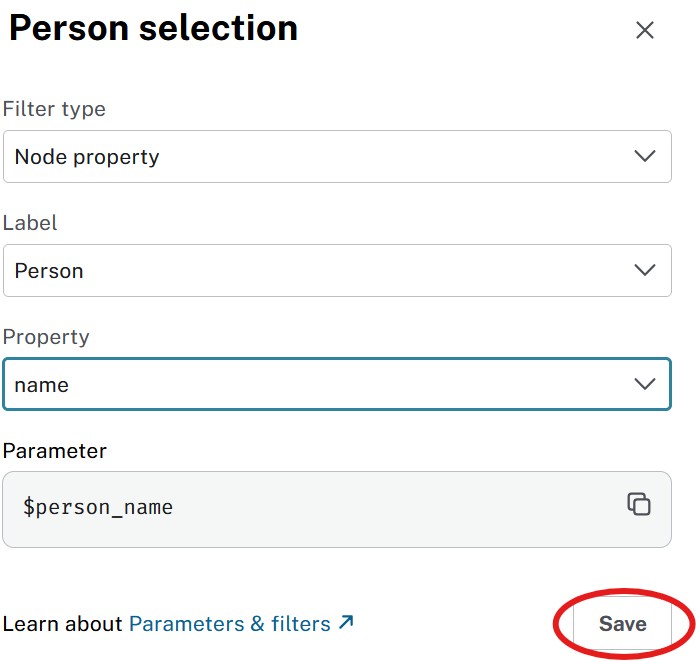

For example, create a "Person selection" filter that will control which actor’s data is displayed.

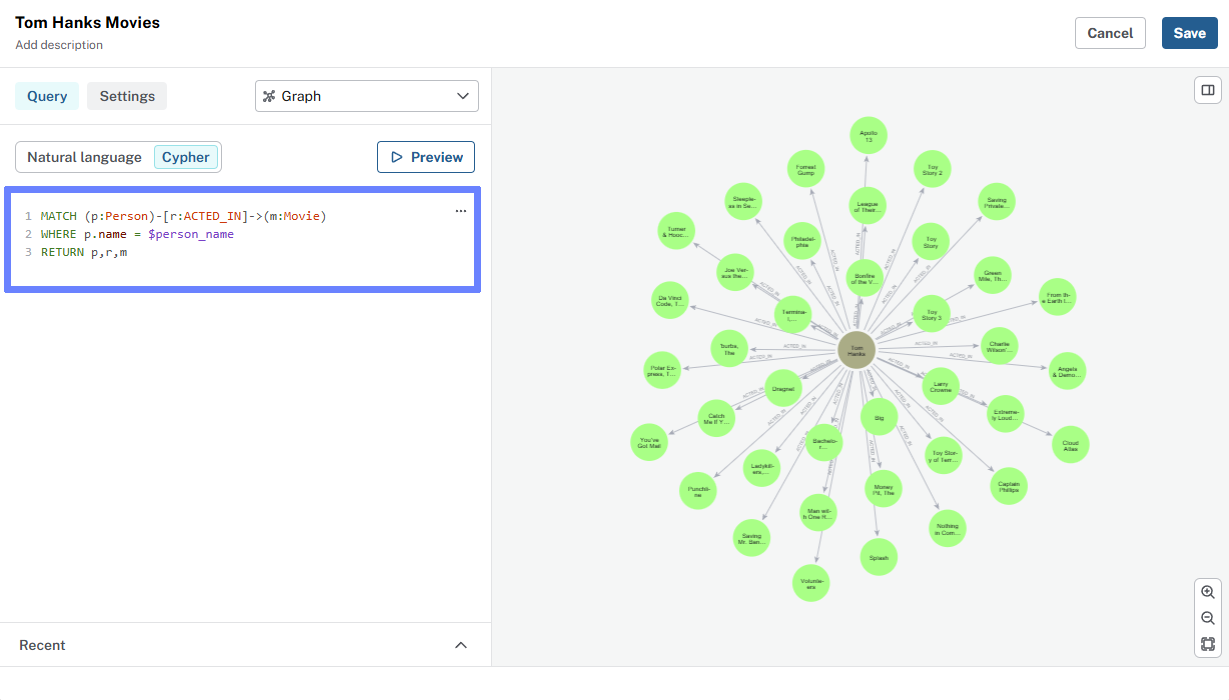

Now update your Actor Overview card query to use the filter parameter:
MATCH (p:Person)-[r:ACTED_IN]->(m:Movie)
WHERE p.name = $person_name
RETURN p,r,mSave your changes and test the filter:

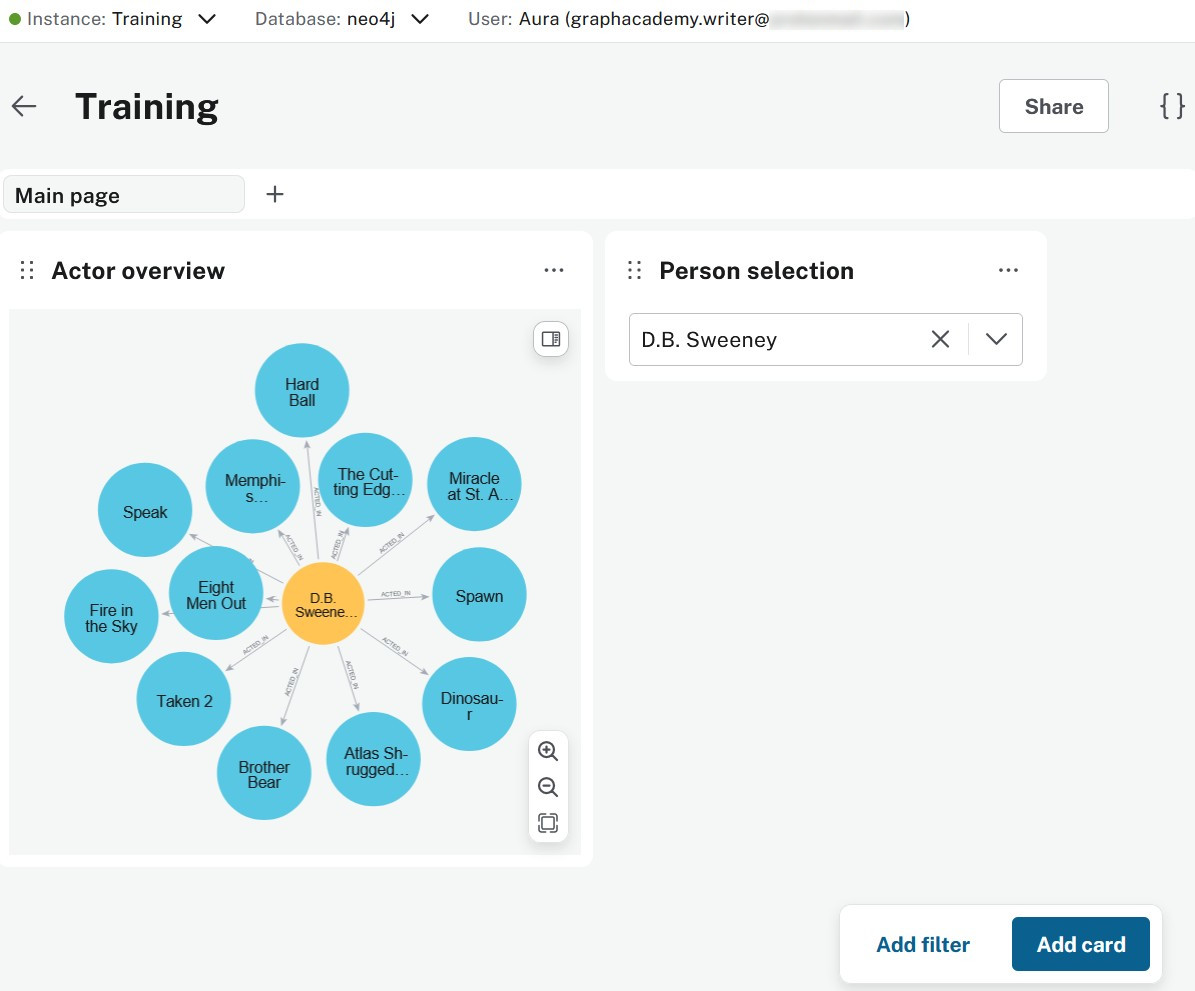

Your dashboard now responds dynamically to filter selections:
Where dashboards fit in your workflow
The dashboard tool enables:
-
Quick data exploration and validation
-
Creating presentations
-
Building operational monitoring dashboards
-
Prototyping before investing in custom applications
Check your understanding
Creating a card with AI
You want a card that shows movies by genre and their average ratings. What do you give the AI in the card editor to get that card?
-
❏ A complex Cypher query with multiple JOINs
-
✓ A natural language description of what you want to visualize
-
❏ Additional software installation
-
❏ Multiple database instances
Hint
The card editor’s AI takes a natural language description. Describe what you want, such as "movies by genre and average ratings"; the AI generates the Cypher and the card.
Solution
A natural language description of what you want to visualize.
In the card editor, describe the insight in plain language, such as "movies by genre and their average ratings." The AI generates the Cypher and the card. For precise control you can also write Cypher directly in the Query field.
Summary
In this lesson, you learned how to create interactive dashboards, build dashboard cards with natural language AI prompts, and add filters to make your dashboards dynamic and user-friendly.
In the next lesson, you will learn how to:
-
Organize dashboard structure and create dashboard pages
-
Customize card styling
-
Visualize aggregated metrics
