In a property graph, relationships can have properties assigned to them. In graph theory, relationship properties are referred to as weights. A weight is a numerical property which represents the cost of traversing that relationship, whether that is distance, time, financial cost or any other factor.

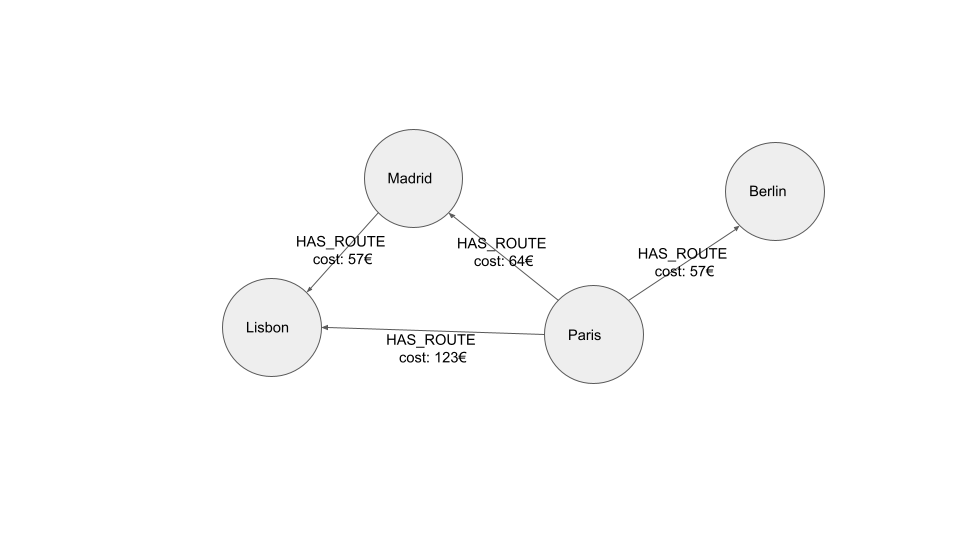

In the above diagram, the relationship weight is used to represent the cost of flying between airports as a monetary value.
You can see that flying between Paris and Lisbon costs 123€. However, if you choose to fly from Paris to Lisbon via Madrid, the cost would actually be cheaper. The cost property of the two relationships comes to 121€, which is 2€ cheaper than the direct route.
Therefore, based on the criteria of cost, the shortest weighted path between Paris and Lisbon follows through Madrid and is not actually the direct connection between the two.
Your application could use the shortest weighted path algorithm to find flight routes that:

Produce the least CO_{2},

Cost the least money,

Take the least time,

Or a combination of the three.
Projecting Weighted Graphs in GDS
To use the weighted shortest path algorithms built into the Neo4j Graph Data Science library, you will first need to create a graph projection in memory using the gds.graph.project()
procedure.
This topic is covered in more detail in the Neo4j Graph Data Science Fundamentals course.
When dealing with a single relationship type or having identical weights on all relationship types, you can use the relationshipProperties
configuration parameter.
relationshipProperties
has three possible inputs:
Type  Description  Example

String
To be used when your projected graph should contain a single relationship property.

List of strings
To be used when you need to add multiple relationship properties to the projection.

Map
To be used when you need to add multiple relationship properties to the projection, while also providing a default value if one does not exist.

In our dataset, we only have one property to represent weight, .distance
, and it is present for all relationships so we don’t need to provide a default value.
So in this case we can use a single string.
You can run the following Cypher statement to project the airport routes graph along with the distance relationship weight:
CALL gds.graph.project(
'routes', // (1)
'Airport', // (2)
'HAS_ROUTE', // (3)
{relationshipProperties:'distance'} // (4)
);

We are creating a new projected graph with the name
routes
.
The graph should contain all nodes with the label
Airport

The graph should contain all relationships with the type
HAS_ROUTE

One relationship property should be loaded,
.distance
, which has no default value
Common Weighted Shortest Path Algorithms
In this lesson, we will cover two of the most commonly used algorithms that come with the Neo4j Graph Data Science library.

Dijkstra SourceTarget Shortest Path

yens
Dijkstra SourceTarget Shortest Path
The Dijkstra SourceTarget algorithm is a commonly used algorithm for finding the shortest weighted path between a source and a target node.
Positive Weights Only
Dijkstra’s algorithm supports weighted graphs with positive relationship weights only. If you have any negative weights, the algorithm will not work correctly.An implementation of Dijkstra’s algorithm is available under the gds.shortestPath.dijkstra
namespace in the Neo4j Graph Data Science library.
The gds.shortestPath.dijkstra.stream()
procedure can be called to calculate the shortest weighted path between nodes.
You can run the following Cypher statement to calculate the shortest weighted path between Paris Charles de Gaulle (CDG) and Lisbon Portela Airport (LIS) and stream the results.
MATCH (source:Airport {iata: "CDG"}), // (1)
(target:Airport {iata:"LIS"})
CALL gds.shortestPath.dijkstra.stream(
'routes', // (2)
{
sourceNode: source, // (3)
targetNode: target, // (4)
relationshipWeightProperty: 'distance' // (5)
}
)
YIELD nodeIds, costs, totalCost // (6)
RETURN [nodeId in nodeIds  gds.util.asNode(nodeId).descr] AS airports, costs, totalCost

The query starts by
MATCH
ing the source and target nodes.
The
gds.shortestPath.dijkstra.stream()
procedure is run on theroutes
projected graph created earlier.
The source node for the algorithm should be Paris Charles de Gaulle (CDG).

The target node for the algorithm should be Lisbon Portela Airport (LIS).

The relationship property that should be used to calculate the shortest path should be distance.

From the procedure’s output, take a list of the internal IDs of the nodes in the shortest path (
nodeIds
), a list of the individual costs (costs
) of this path, and the overall costtotalCost
.
airports  costs  totalCost




The costs output provides the accumulated cost of traversing to each node in the path, while the totalCost provides the total cost of traversing from source to target.
You can find more information on the Neo4j Graph Data Science implementation of Dijkstra in the Graph Data Science Manual.
Yen’s Algorithm
Yen’s kShortest Path algorithm, also referred to as Yen’s Shortest Path algorithm is similar to Dijkstra’s shortest path algorithm with the exception of a configurable k
value, where k
represents the number of shortest paths to return.
The algorithm makes sure that an already discovered shortest path will not be traversed again.
An implementation Yen’s algorithm is stored under the gds.shortestPath.yens
namespace in the Neo4j Graph Data Science library.
The gds.shortestPath.yens.stream()
procedure can be called to calculate the k shortest weighted path between nodes.
You can run the following Cypher statement to calculate the three shortest weighted path between Paris Charles de Gaulle and Lisbon Portela Airport airports using the Yen’s algorithm.
MATCH (source:Airport {iata: "CDG"}),
(target:Airport {iata:"LIS"})
CALL gds.shortestPath.yens.stream(
'routes',
{
sourceNode:source,
targetNode:target,
relationshipWeightProperty:'distance',
k:3 // (1)
})
YIELD index, nodeIds, totalCost // (2)
RETURN index, [nodeId in nodeIds  gds.util.asNode(nodeId).descr] AS airports, totalCost

The
k
value in the configuration map above is set to3
, ensuring that up to three shortest routes are returned.
In addition to the node IDs and total cost, an additional
index
value is returned by this procedure which represents the order in which this path appears in the result set.
index  airports  totalCost










From the results, you can see that the shortest path is identical to the value returned by Dijkstra’s algorithm above, but two additional routes are suggested.
If you were to fly from Paris to Lisbon via Nantes, you would make additional 9 miles or additional 10 miles via Bilbao.
Check your understanding
1. Which of the below options should be used to represent the weight of a relationship?

❏
String

❏
List

✓
Number

❏
Boolean
Hint
The relationship weight could be used to represent cost, distance or time.
Solution
The answer is Number.
2. Which algorithm is suitable for finding multiple shortest paths?

❏ Dijkstra SourceTarget shortest path algorithm

❏ PageRank

✓ Yen’s kShortest Path algorithm

❏ Node Similarity
Hint
The algorithm allows you to specify a k
value which corresponds to the number of paths to return.
Solution
The answer is Yen’s kShortest Path algorithm.
Summary
In this lesson you learned how to find the shortest weighted paths using the two of the Path Finding procedures included in the Neo4j Graph Data Science library.
In the next challenge, you will use Dijkstra’s shortest path algorithm to find the shortest weighted path between other nodes.
