Projecting bipartite and multipartite graphs

What is a bipartite graph?

A bipartite graph has two distinct types of nodes, with relationships only connecting nodes of different types—never nodes of the same type.

Think of it as a graph "of two parts."

Example: Customers purchasing products:

(No Customer-to-Customer connections) (No Product-to-Product connections)

In a true bipartite graph:

What is a multipartite graph?

A multipartite graph contains three or more distinct node types.

You could also call this a 'heterogeneous graph' if it has multiple relationship types as well.

In practice:

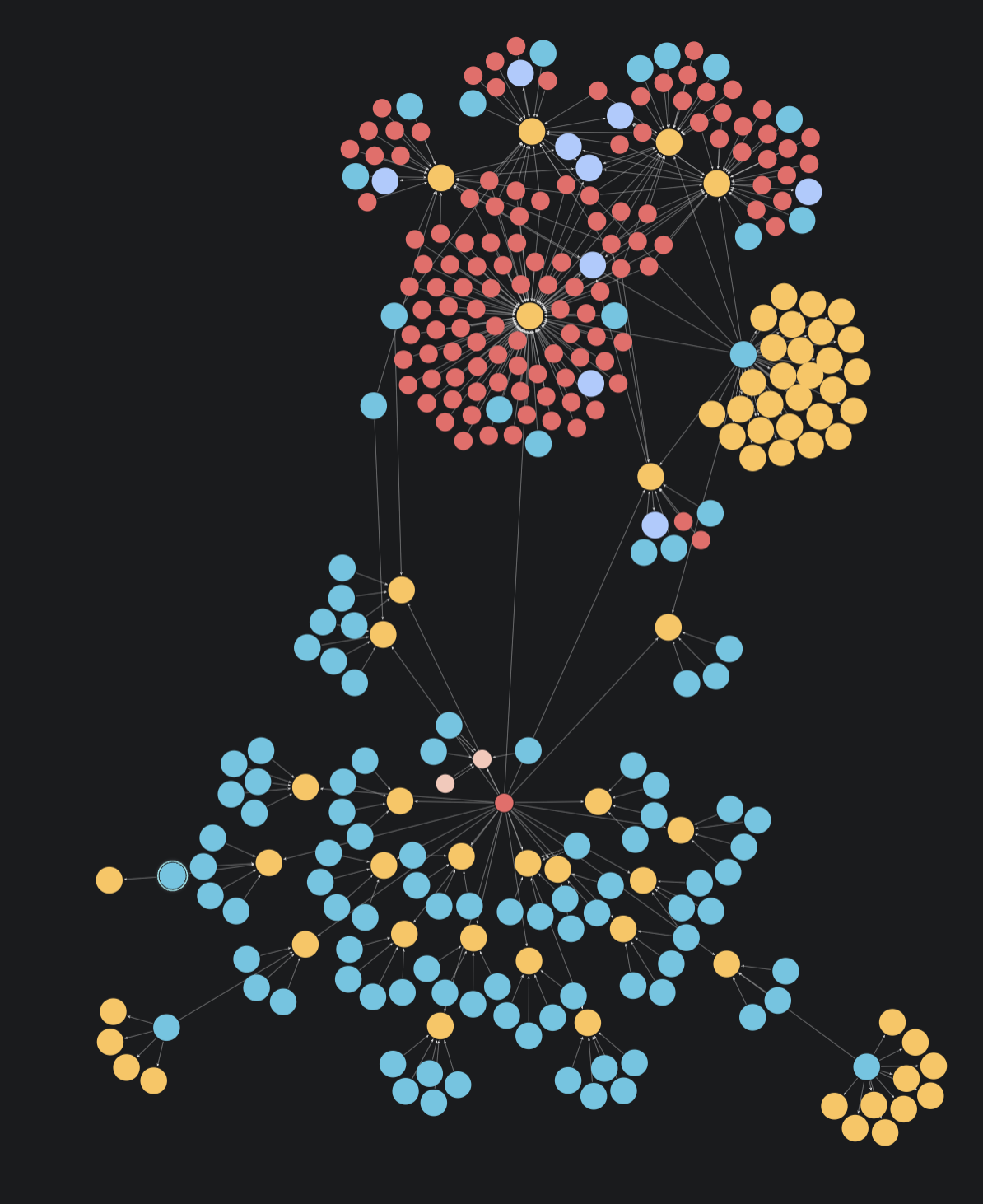

Here’s an example from the Movies dataset you’re experimenting with:

In this image we have the following nodes and relationships:

This graph has four node types (Actor, User, Movie, Genre) and three relationship types, making it both multipartite and heterogeneous.

Understanding what you’re actually projecting

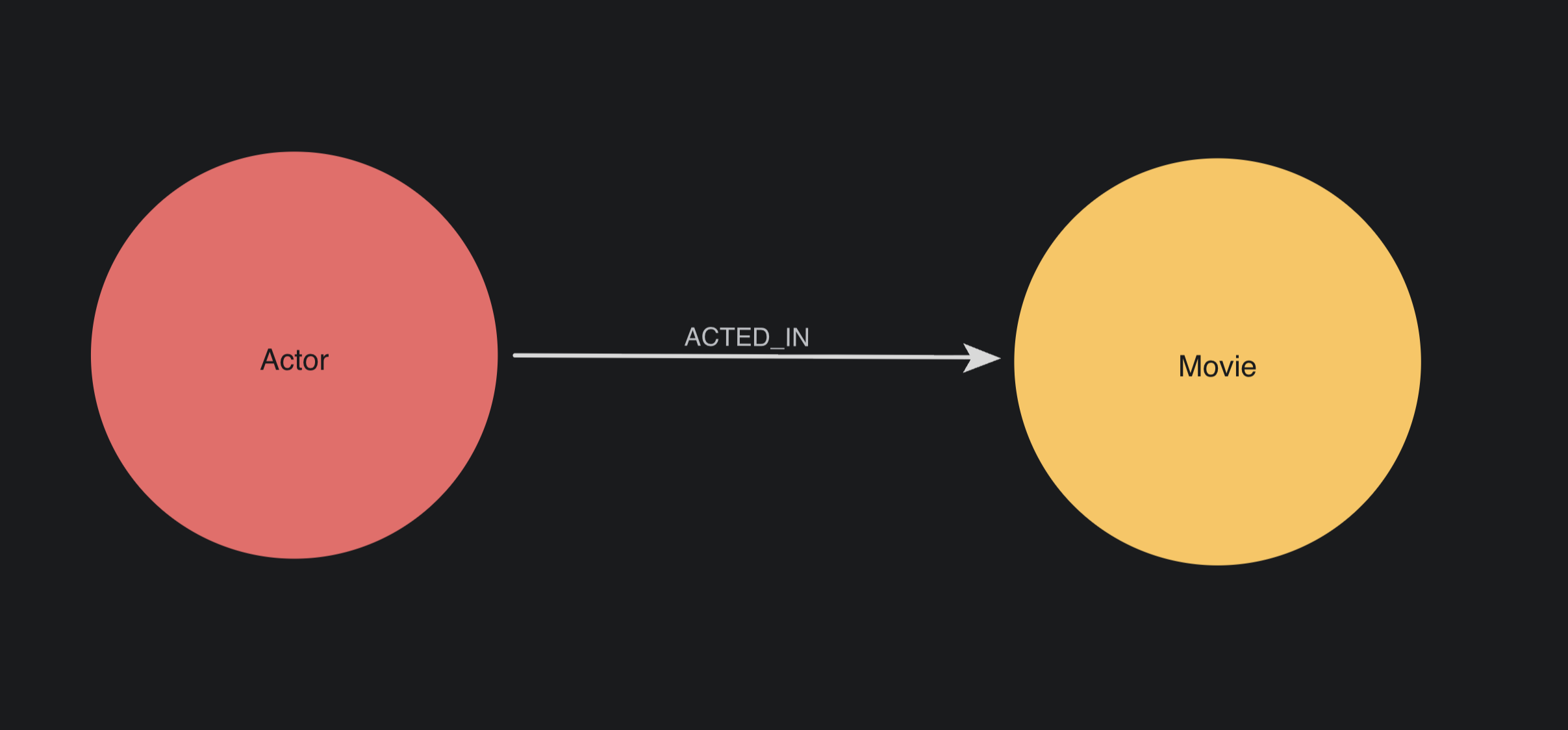

Remember when we projected actors and movies?

MATCH (source:Actor)-[r:ACTED_IN]->(target:Movie) // (1)
WITH gds.graph.project( // (2)
  'actors-movies', // (3)
  source, // (4)
  target, // (5)
  {}, // (6)
  {} // (7)
) AS g
RETURN g.graphName, g.nodeCount, g.relationshipCount // (8)

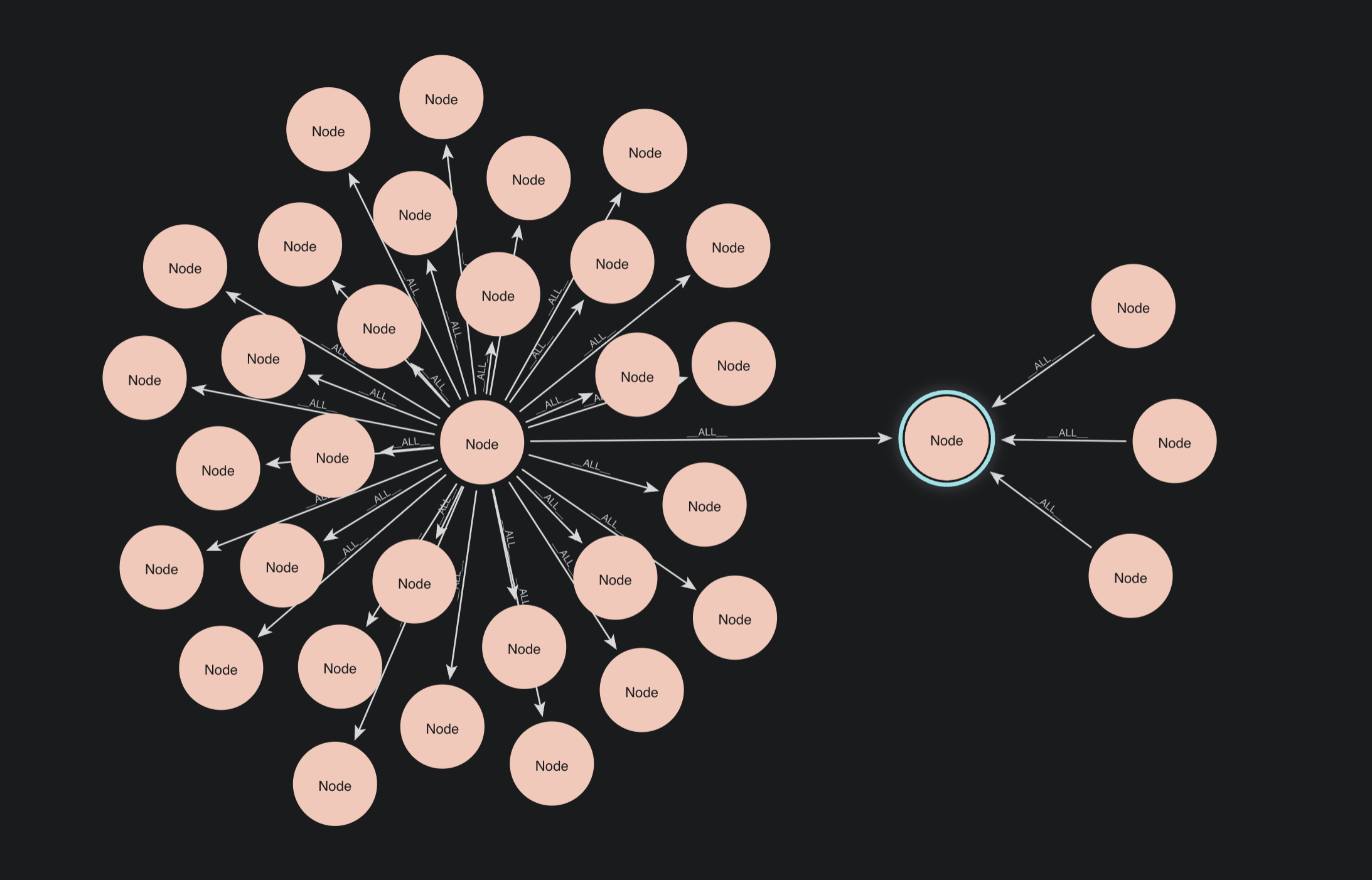

Even though this graph is naturally bipartite, GDS sees this projection as a monopartite graph—treating all nodes as a single generic type, ignoring the Actor and Movie labels.

This happens because we have not specified that labels should be preserved. GDS is projecting exactly what we asked for.

For certain algorithms, this doesn’t matter. For others, you may actually want to treat different node types as the same.

In most cases, when your data has multiple types, you’ll want to re-project a monopartite subgraph.

However, in some cases, you’ll want to preserve those distinctions in your projection.

Preserving labels in projections

In earlier lessons, you saw the empty configuration settings in graph projection syntax.

To preserve labels, use these configuration parameters:

MATCH (source:Actor)-[r:ACTED_IN]->(target:Movie) // (1)
WITH gds.graph.project( // (2)
  'actors-movies-bipartite', // (3)
  source, // (4)
  target, // (5)
  {
    sourceNodeLabels: labels(source), // (6)
    targetNodeLabels: labels(target), // (7)
    relationshipType: type(r) // (8)
  },
  {}
) AS g
RETURN g.graphName, g.nodeCount, g.relationshipCount // (9)

Key configuration parameters:

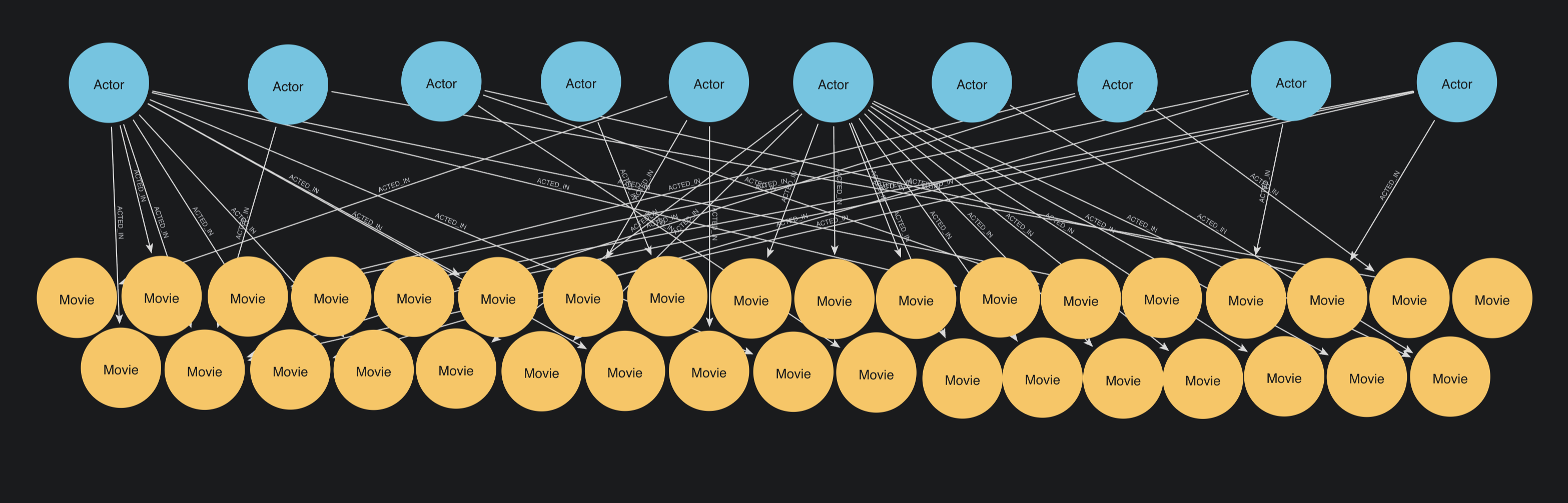

Now GDS creates a properly labeled bipartite graph:

You do not have to use all three of these settings at any given time — but there’s no harm in doing so.

Creating multipartite projections

The same configuration works for three or more node types:

MATCH (source)-[r]->(target) // (1)
WHERE source:Actor OR source:Movie OR source:User OR source:Genre AND target:Actor OR target:Movie OR target:User OR target:Genre // (2)
WITH gds.graph.project( // (3)
  'movies-network-multi', // (4)
  source, // (5)
  target, // (6)
  {
    sourceNodeLabels: labels(source), // (7)
    targetNodeLabels: labels(target), // (8)
    relationshipType: type(r) // (9)
  },
  {}
) AS g
RETURN g.graphName, g.nodeCount, g.relationshipCount // (10)

This preserves all four node types (Actor, Movie, User, Genre) and their relationship types in a single projection.

When label preservation matters

Use default monopartite (no label configuration) when:

Preserve labels (bipartite/multipartite) when:

Algorithm considerations

Not all algorithms work well with multiple node types.

Throughout this course, as you happen across an algorithm, we’ll show you how to decide on your projection type, and explain the reasoning.

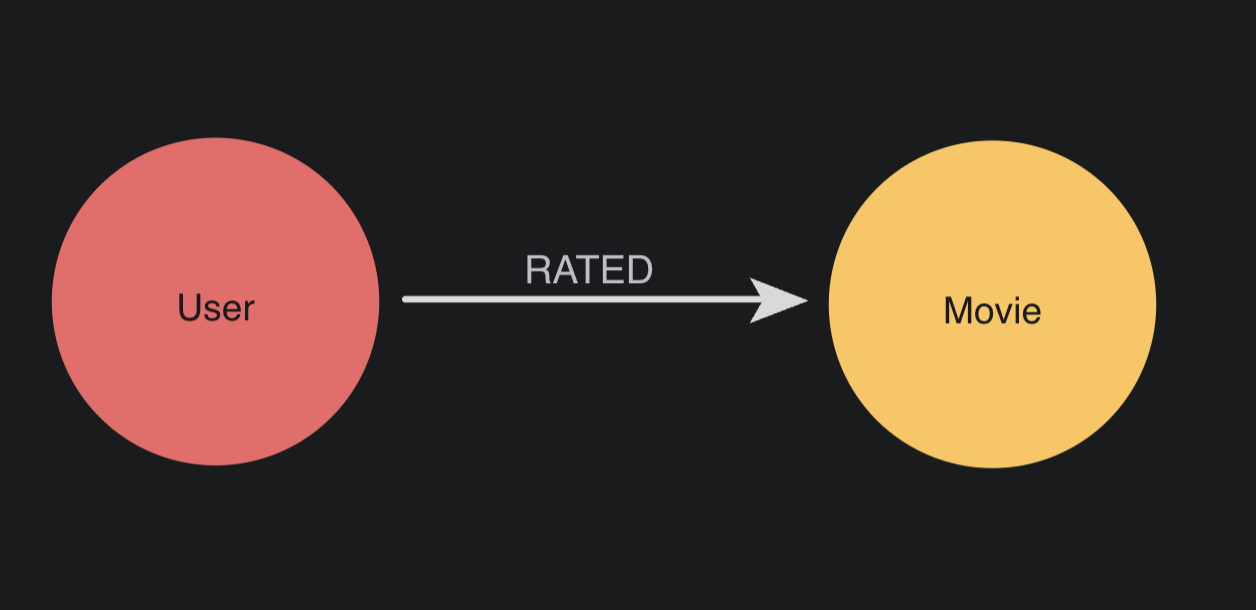

For now, to illustrate this, let’s project our Movies and Users to a graph.

MATCH (source:User)-[r:RATED]->(target:Movie) // (1)
WITH gds.graph.project( // (2)
  'user-rated-movie', // (3)
  source, // (4)
  target, // (5)
  {
    sourceNodeLabels: labels(source), // (6)
    targetNodeLabels: labels(target), // (7)
    relationshipType: type(r) // (8)
  },
  {}
) AS g
RETURN g.graphName, g.nodeCount, g.relationshipCount // (9)

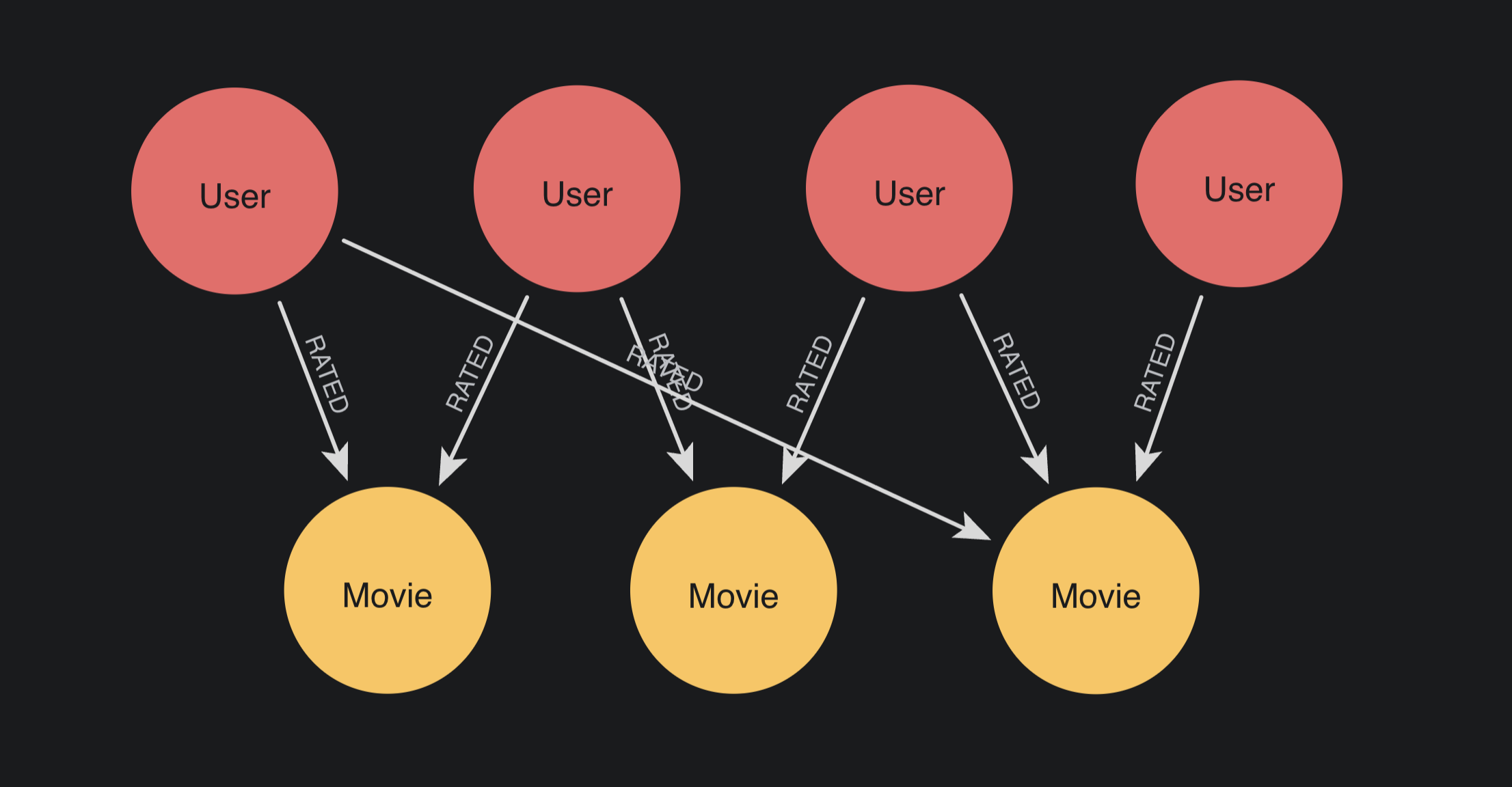

Now, you have projected a graph that really does look like this:

The labels persist, and we can now use them when running an algorithm.

Running node similarity

Node similarity is an algorithm that compares a set of nodes based on the nodes they are connected to. When you run it, it will write new relationships back to the graph.

Two nodes are considered similar if they share many of the same neighbors.

Filtered node similarity is an extension of node similarity which allows you to choose specific node labels to be the source and target of the relationships created.

You can learn more about the node similarity algorithm in the GDS docs.

For now, all you need to know is that node similarity works extremely well on bipartite graphs.

Let’s run node similarity on our bipartite user-rated-movie graph.

Here we’re using .write() mode to persist results to the database. This is different from .stream() which only displays results. You’ll learn when to use each execution mode in Module 3.

cypher

Run node similarity on bipartite graph

CopyRun

CALL gds.nodeSimilarity.write( // (1)
  'user-rated-movie', // (2)
  {
    writeRelationshipType: 'SIMILAR', // (3)
    writeProperty: 'score' // (4)
  })
YIELD nodesCompared, relationshipsWritten // (5)

1. Call node similarity algorithm in write mode

2. Run on 'user-rated-movie' projection

3. Write new relationships with type 'SIMILAR'

4. Write similarity scores as 'score' property

5. Yield the number of nodes compared and relationships written

Now, to verify what it has done — or rather, what it has not done — run the following query:

cypher

Check for User-to-Movie similarity (should be empty)

CopyRun

MATCH (u:User)-[r:SIMILAR]->(m:Movie) // (1)
RETURN u, r, m // (2)
LIMIT 1 // (3)

1. Try to match User nodes with SIMILAR relationships to Movie nodes

2. Return the matched users, relationships, and movies

3. Limit to 1 result (should return nothing)

This query should have returned no changes, no records.

Node similarity only considers nodes to be similar if they have shared neighbors. A User node, in our model, is never a direct neighbor with another User node, and so a User will never be similar to a shared Movie.

In a bipartite graph, every node on one side exclusively connects to nodes on the other side of the divide.

The relationships that we created with the algorithm only exist between nodes on the same side of the graph.

Run the following query to see some of your new SIMILAR relationships.

cypher

View similar users and movies

CopyRun

MATCH path = (:User)-[:SIMILAR]->(:User)-[:RATED]->(:Movie)-[:SIMILAR]->(m:Movie) // (1)
RETURN path // (2)
LIMIT 10 // (3)

1. Match a path showing similar users and similar movies connected through ratings

2. Return the complete path

3. Limit to 10 results

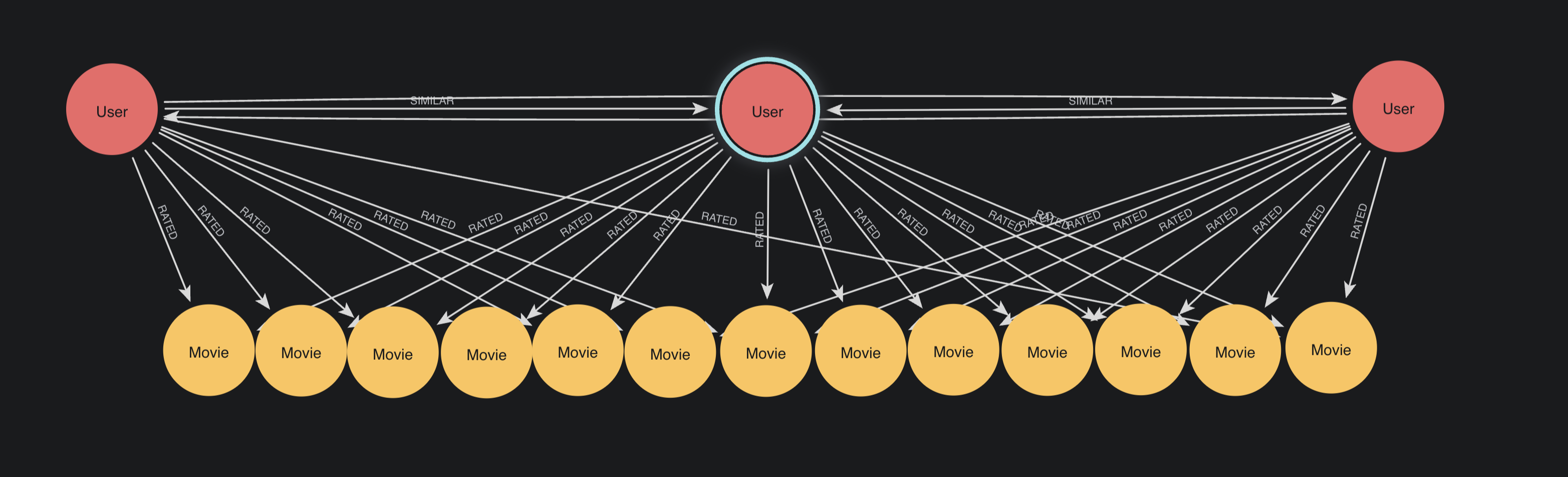

You should now find that User nodes have received SIMILAR relationships to each other, based on their movie rating behaviors.

You could use these newly inferred relationships in multiple ways — not least as part of a content recommendation system.

What’s next

You now understand bipartite and multipartite graphs—structures with two or more distinct node types. You’ve learned how to preserve these distinctions using label and relationship configuration settings.

In the next lesson, you’ll practice creating projections with multiple node types from the Movies dataset.
