Modeling Relationships

Naming relationships

Choosing good names (types) for the relationships in the graph is important. Relationship types need to be something that is intuitive to stakeholders and developers alike. Relationship types cannot be confused with an entity name.

So in our example use cases, we could define these relationship types:

Note here that we use the Neo4j best practice of all capital letters/underscore characters for the name of the relationship.

Relationship direction

When you create a relationship in Neo4j, a direction must either be specified explicitly or inferred by the left-to-right direction in the pattern specified. At runtime, during a query, direction is typically not required.

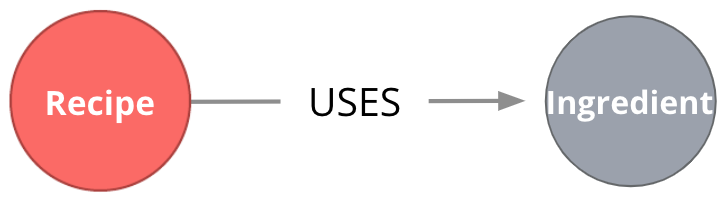

In our example use cases shown above, the USES relationship must be created to go from a Recipe node to an Ingredient node.

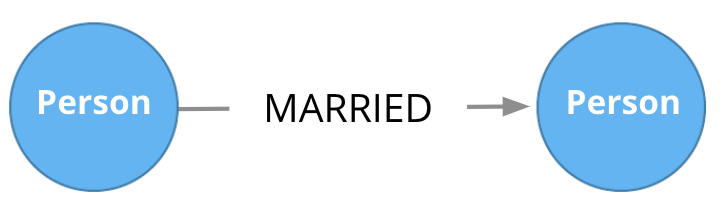

The MARRIED relationship could be created to start in either node since this type of relationship is symmetric.

Fanout

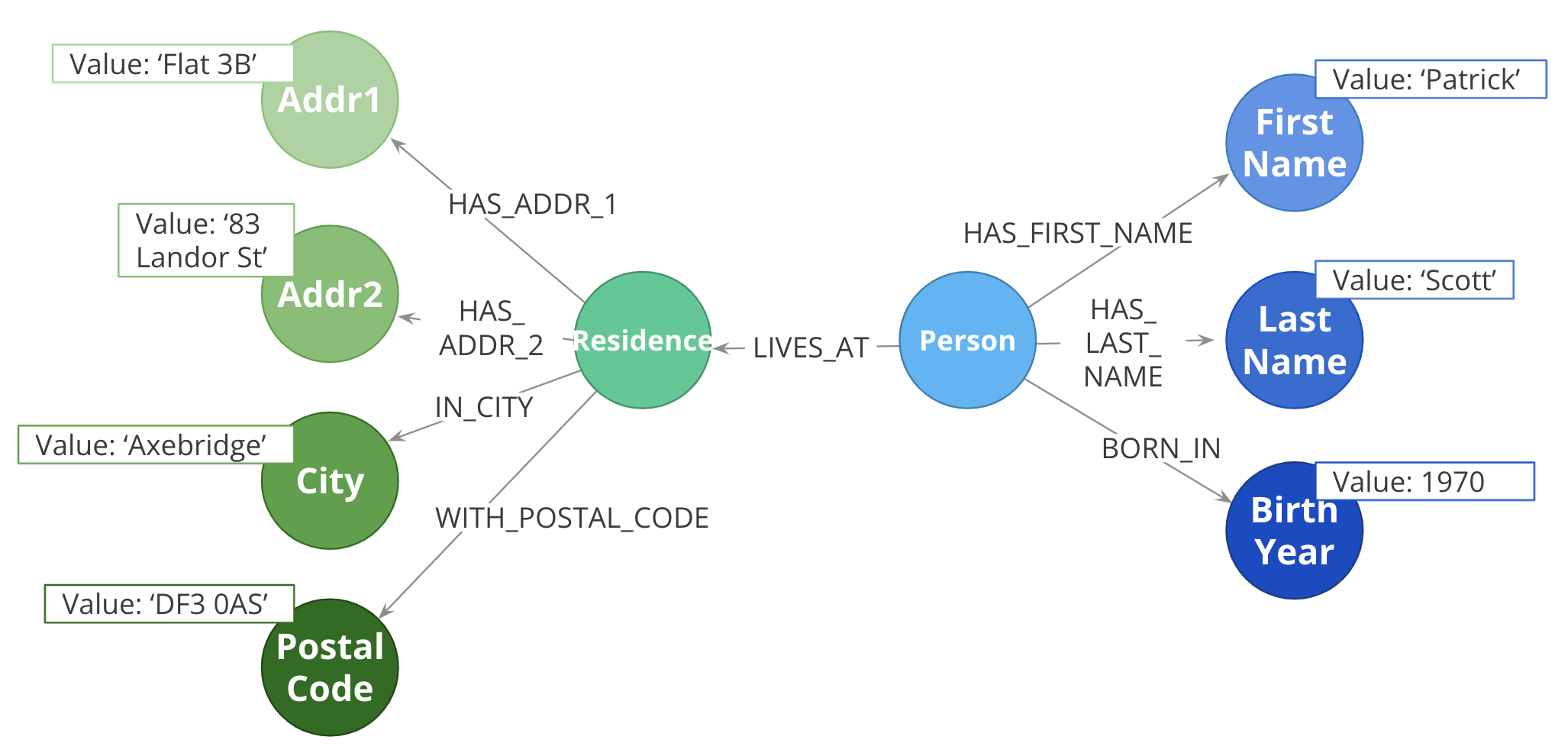

Here, we have entities (Person, Residence) represented not as a single node, but as a network or linked nodes.

This is an extreme example of fanout, and is almost certainly overkill for any real-life solution, but some amount of fanout can be very useful.

For example, splitting last names onto separate nodes helps answer the question, “Who has the last name Scott?”. Similarly, having cities as separate nodes assists with the question, “Who lives in the same city as Patrick Scott?”.

The main risk about fanout is that it can lead to very dense nodes, or supernodes. These are nodes that have hundreds of thousands of incoming or outgoing relationships Supernodes need to be handled carefully.

Relationships in the Movie graph

Now let’s look at identifying the relationships for these use cases:

Given these use cases, we name the relationships:

Furthermore, both of these relationship types start at Person nodes and end in Movie nodes.

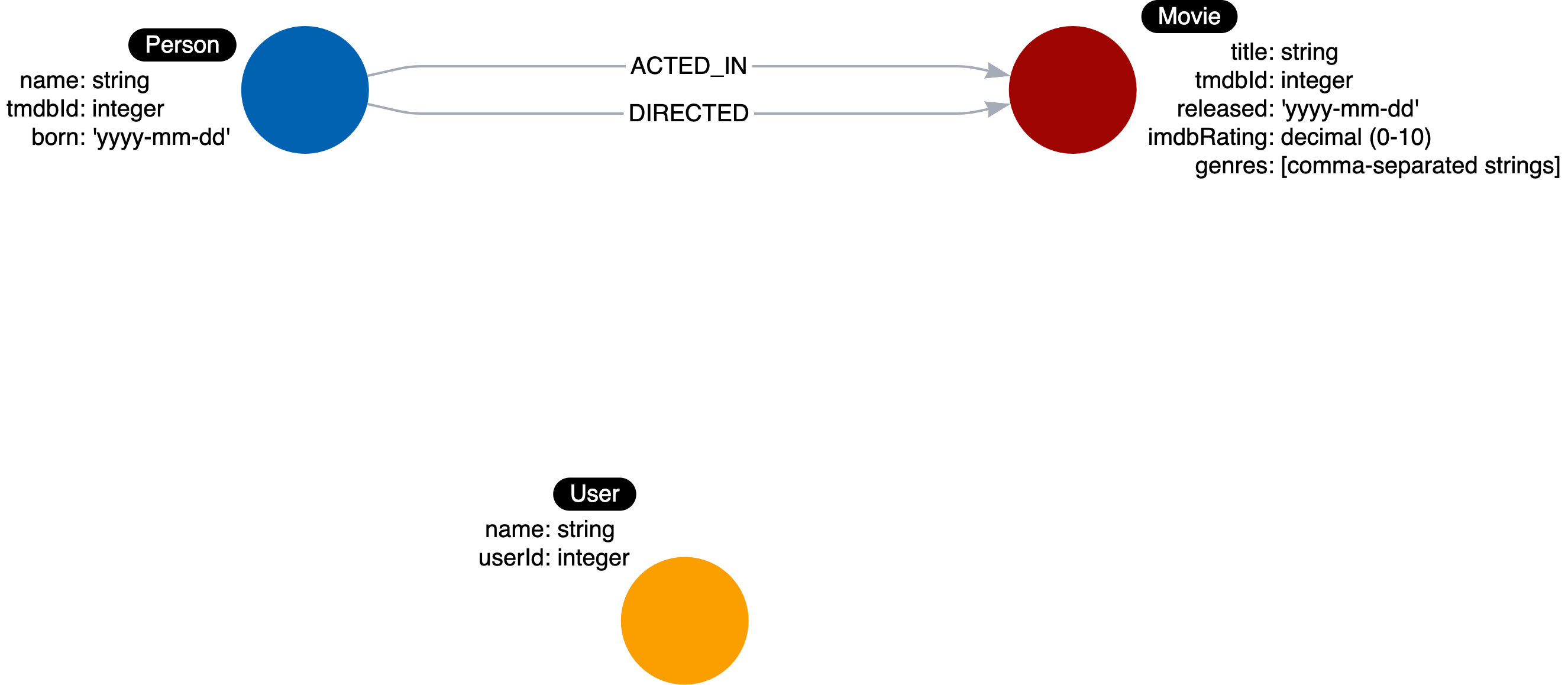

Here is the supporting graph data model:

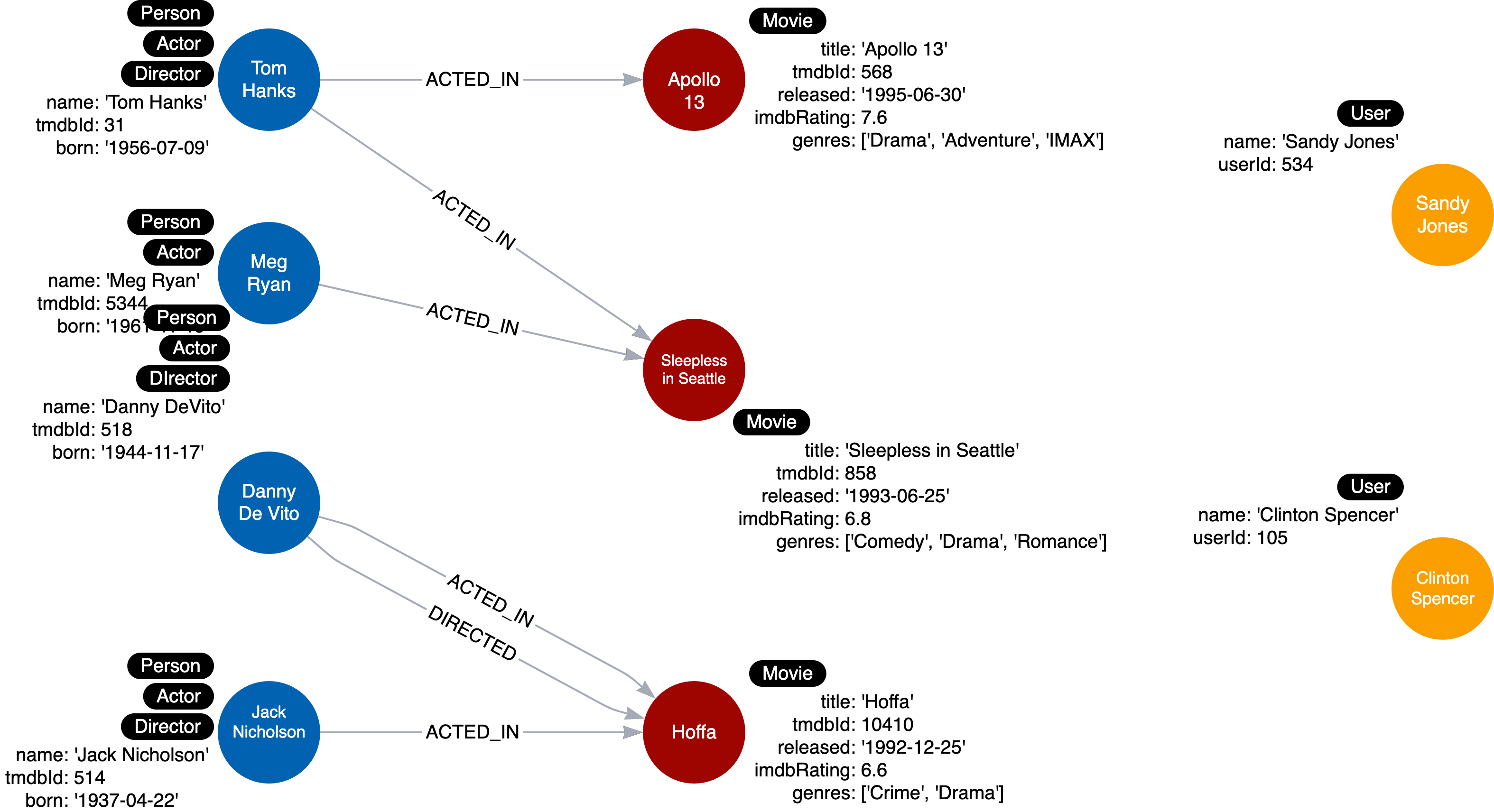

And here is the instance model to support this graph data model:

Tom Hanks acted in two movies. Meg Ryan and Jack Nicholson each acted in one movie. Danny DeVito both acted in and directed the same movie. Exploring relationships with this instance model we see that the movie Apollo 13 has a single actor in the graph, but the other two movies have two actors each.

Properties for relationships

Properties for a relationship are used to enrich how two nodes are related. When you define a property for a relationship, it is because your use cases ask a specific question about how two nodes are related, not just that they are related.

For example, we saw in the Neo4j Fundamentals course that properties can be added to a relationship to further describe it.

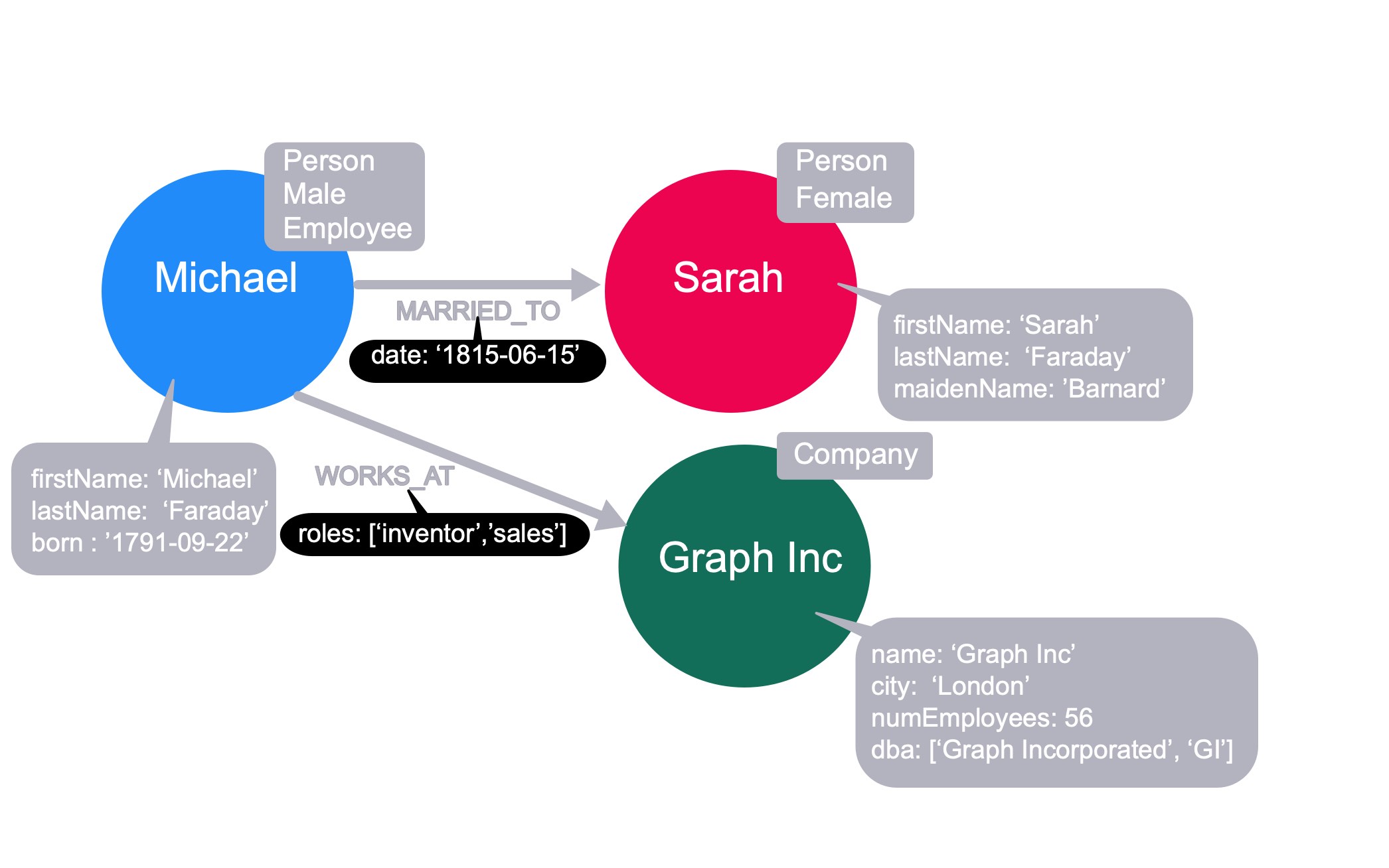

Here we see that we have a date property on the MARRIED relationship to further describe the relationship between Michael and Sarah. Additionally, we have a roles property on the WORKS_AT relationship to describe the roles that Michael has or had when he worked at Graph Inc.

These properties are specific to the relationship between two nodes.

Relationship properties in the Movie graph

Just like you analyze the use cases for naming labels, relationship types, and node properties, you use the use cases to come up with properties for relationships.

Here is a use case:

The runtime operations for this use case are:

We know that the role for a particular ACTED_IN relationship will be necessary for this use case. So we add the role property to this relationship. Here is the data model:

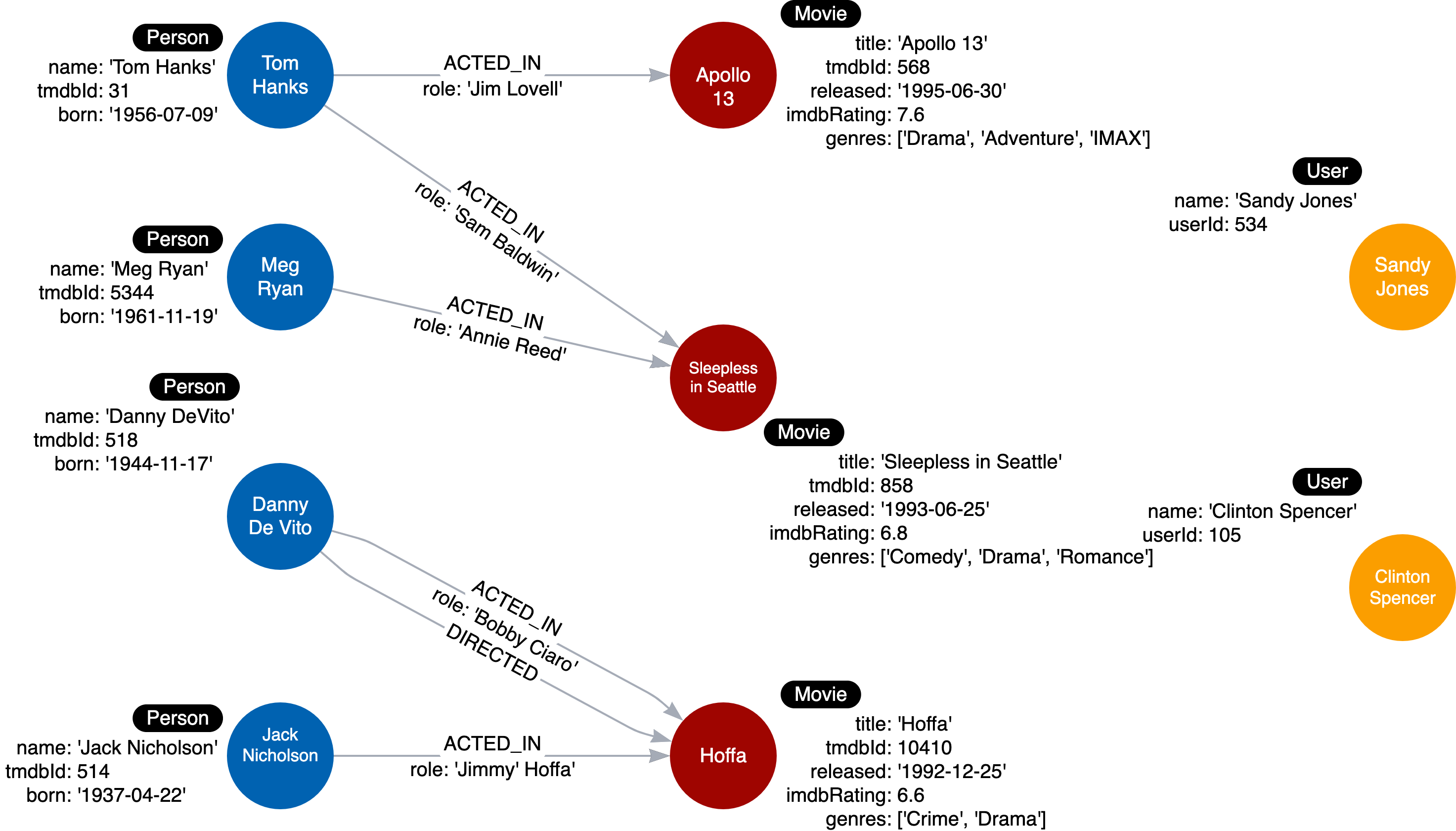

And here is the instance model you will be creating:

Each ACTED_IN relationship here has a different value for the role property.
